SIR878DP-T1-GE3
MOSFET N-CH 100V 40A PPAK SO-8Manufacturer: Vishay Siliconix
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Vishay Siliconix TrenchFET® SIR878DP-T1-GE3 is an N-channel power MOSFET designed for high-efficiency power conversion. This device features a 100V drain-source voltage (Vdss) and a continuous drain current of 40A at 25°C (Tc). The SIR878DP-T1-GE3 offers a low on-resistance of 14mOhm maximum at 15A and 10V gate-source voltage (Vgs). Its PowerPAK® SO-8 package with surface mount capability facilitates compact board designs. With a maximum power dissipation of 44.5W at 25°C (Tc), this MOSFET is suitable for demanding applications. Key parameters include a gate charge (Qg) of 43 nC maximum at 10V Vgs and input capacitance (Ciss) of 1250 pF maximum at 50V Vds. The operating temperature range is -55°C to 150°C (TJ). This component is widely utilized in industrial power supplies, automotive electronics, and data center infrastructure.
Additional Information
Series: TrenchFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

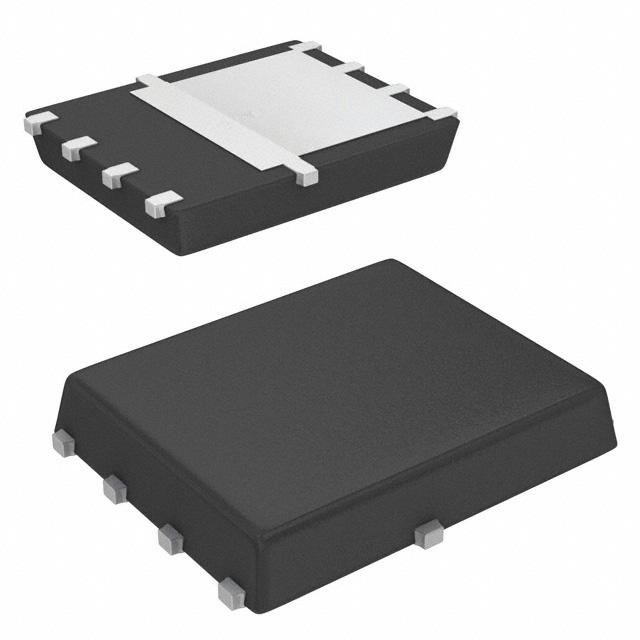

| Package / Case | PowerPAK® SO-8 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 40A (Tc) |
| Rds On (Max) @ Id, Vgs | 14mOhm @ 15A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 5W (Ta), 44.5W (Tc) |
| Vgs(th) (Max) @ Id | 2.8V @ 250µA |
| Supplier Device Package | PowerPAK® SO-8 |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 43 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1250 pF @ 50 V |
