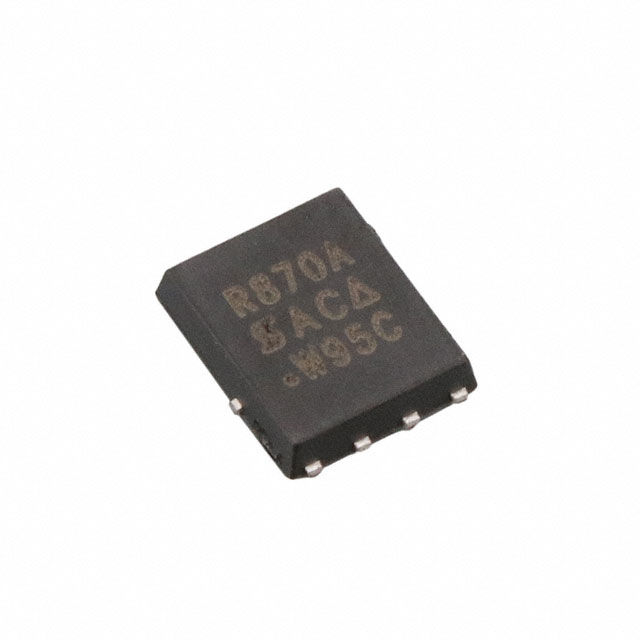

SIR870ADP-T1-RE3
MOSFET N-CH 100V 60A PPAK SO-8Manufacturer: Vishay Siliconix
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Vishay Siliconix SIR870ADP-T1-RE3 is an N-Channel Power MOSFET featuring TrenchFET® technology. This device offers a 100V drain-source voltage (Vdss) and a continuous drain current capability of 60A (Tc) at 25°C. The SIR870ADP-T1-RE3 exhibits a low on-resistance (Rds On) of 6.6mOhm maximum at 20A and 10V, with a drive voltage range from 4.5V to 10V. Its high power dissipation of 104W (Tc) and low thermal resistance make it suitable for demanding applications. Key parameters include a gate charge (Qg) of 80 nC maximum at 10V and input capacitance (Ciss) of 2866 pF maximum at 50V. The component is housed in a PowerPAK® SO-8 surface-mount package and operates within a temperature range of -55°C to 150°C (TJ). This MOSFET is commonly utilized in power supply, automotive, and industrial applications. It is supplied in tape and reel packaging.
Additional Information
Series: TrenchFET®RoHS Status: unknownManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | PowerPAK® SO-8 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 60A (Tc) |
| Rds On (Max) @ Id, Vgs | 6.6mOhm @ 20A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 104W (Tc) |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | PowerPAK® SO-8 |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 80 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2866 pF @ 50 V |
