SIJA22DP-T1-GE3
MOSFET N-CH 25V 64A/201A PPAKManufacturer: Vishay Siliconix
Categories: Single FETs, MOSFETs
Quality Control: Learn More

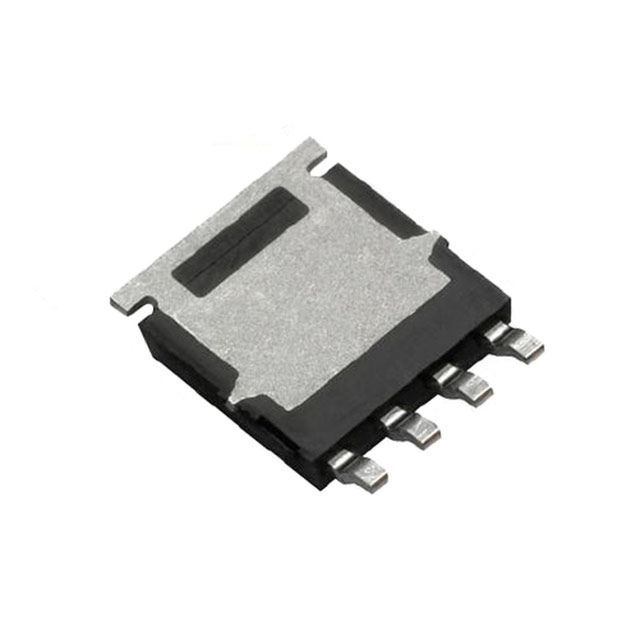

N-Channel 25 V 64A (Ta), 201A (Tc) 4.8W (Ta), 48W (Tc) Surface Mount PowerPAK® SO-8
Additional Information
Series: TrenchFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | PowerPAK® SO-8 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 64A (Ta), 201A (Tc) |
| Rds On (Max) @ Id, Vgs | 0.74mOhm @ 20A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 4.8W (Ta), 48W (Tc) |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Supplier Device Package | PowerPAK® SO-8 |
| Vgs (Max) | +20V, -16V |
| Drain to Source Voltage (Vdss) | 25 V |
| Gate Charge (Qg) (Max) @ Vgs | 125 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 6500 pF @ 15 V |
