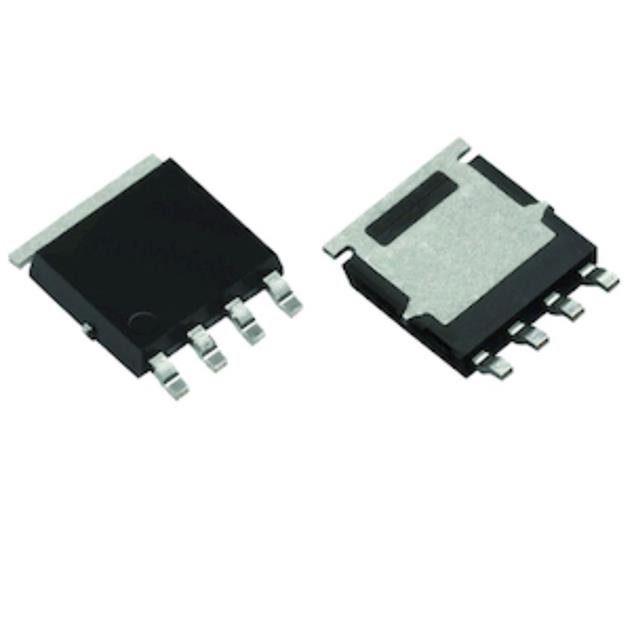

SIJ4819DP-T1-GE3
P-CHANNEL 80-V (D-S) MOSFET POWEManufacturer: Vishay Siliconix
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 80 V 11.5A (Ta), 44.4A (Tc) 5W (Ta), 73.5W (Tc) Surface Mount PowerPAK® SO-8
Additional Information
Series: TrenchFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | PowerPAK® SO-8 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 11.5A (Ta), 44.4A (Tc) |
| Rds On (Max) @ Id, Vgs | 20.7mOhm @ 10A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 5W (Ta), 73.5W (Tc) |
| Vgs(th) (Max) @ Id | 2.6V @ 250µA |
| Supplier Device Package | PowerPAK® SO-8 |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 80 V |
| Gate Charge (Qg) (Max) @ Vgs | 65 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 3420 pF @ 40 V |
