SIHL620STRL-GE3
LOGIC MOSFET N-CHANNEL 200VManufacturer: Vishay Siliconix
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Vishay Siliconix SIHL620STRL-GE3 is an N-Channel Power MOSFET designed for high-efficiency switching applications. This device features a 200V drain-to-source voltage (Vdss) and a continuous drain current (Id) of 5.2A at 25°C (Tc). The on-resistance (Rds On) is specified at a maximum of 800mOhm at 3.1A and 10V gate drive. It supports a gate-source voltage range of +/-10V, with a threshold voltage (Vgs(th)) of 2V at 250µA. Key parameters include a gate charge (Qg) of 16nC at 5V and input capacitance (Ciss) of 360pF at 25V. The component offers a maximum power dissipation of 3.1W (Ta) and 50W (Tc). Packaged in a TO-263 (D2PAK) surface-mount configuration and supplied on tape and reel, the SIHL620STRL-GE3 is suitable for use in power supplies, motor control, and lighting applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

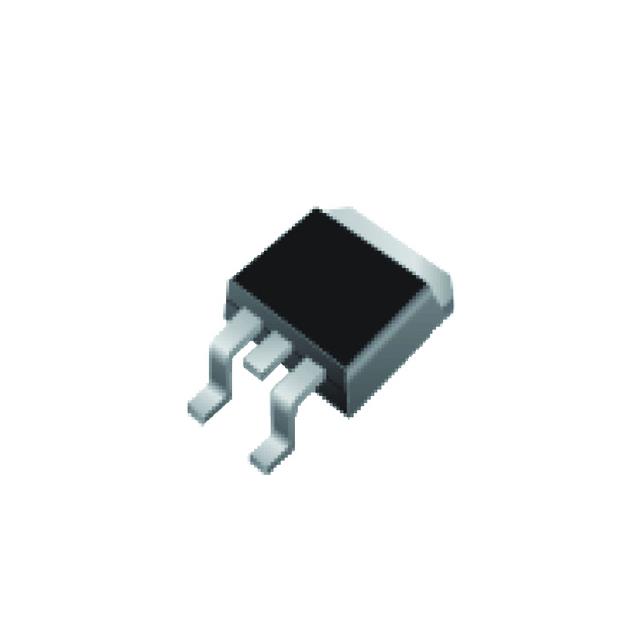

| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 5.2A (Tc) |
| Rds On (Max) @ Id, Vgs | 800mOhm @ 3.1A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 3.1W (Ta), 50W (Tc) |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Supplier Device Package | TO-263 (D2PAK) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V |
| Vgs (Max) | ±10V |
| Drain to Source Voltage (Vdss) | 200 V |
| Gate Charge (Qg) (Max) @ Vgs | 16 nC @ 5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 360 pF @ 25 V |
