SIHFRC20TR-GE3
MOSFET N-CHANNEL 600VManufacturer: Vishay Siliconix
Categories: Single FETs, MOSFETs
Quality Control: Learn More

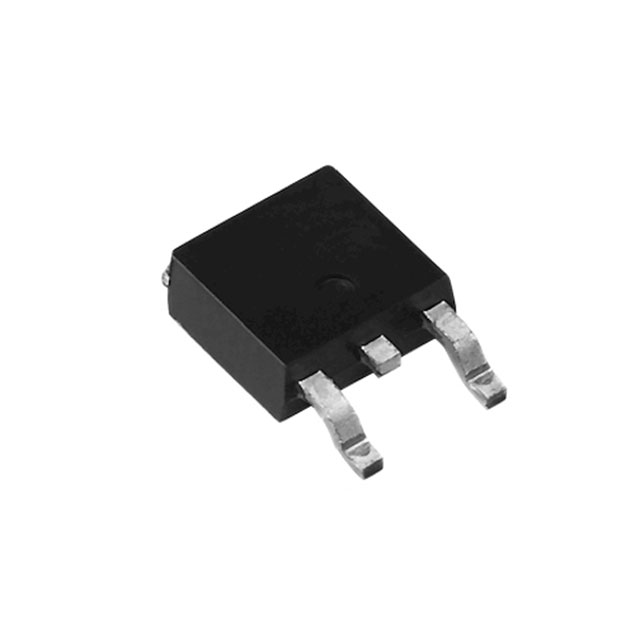

N-Channel 600 V 2A (Tc) 2.5W (Ta), 42W (Tc) Surface Mount TO-252AA
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 2A (Tc) |
| Rds On (Max) @ Id, Vgs | 4.4Ohm @ 1.2A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W (Ta), 42W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | TO-252AA |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 600 V |
| Gate Charge (Qg) (Max) @ Vgs | 18 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 350 pF @ 25 V |
