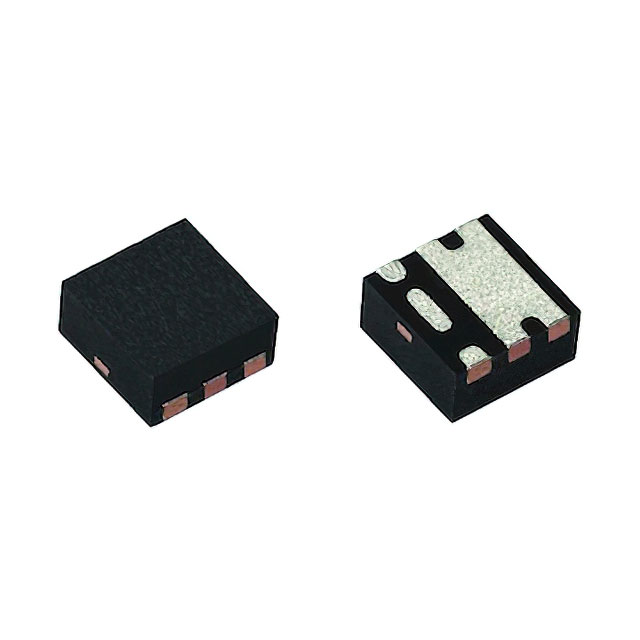

SIB4317EDK-T1-GE3
P-CHANNEL 30-V (D-S) MOSFET POWEManufacturer: Vishay Siliconix
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 30 V 4.3A (Ta), 4.5A (Tc) 1.95W (Ta), 10W (Tc) Surface Mount PowerPAK® SC-75-6
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | PowerPAK® SC-75-6 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 4.3A (Ta), 4.5A (Tc) |
| Rds On (Max) @ Id, Vgs | 65mOhm @ 3A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 1.95W (Ta), 10W (Tc) |
| Vgs(th) (Max) @ Id | 1.3V @ 250µA |
| Supplier Device Package | PowerPAK® SC-75-6 |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 10V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 23 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 600 pF @ 15 V |
