SIA811DJ-T1-E3
MOSFET P-CH 20V 4.5A PPAK SC70-6Manufacturer: Vishay Siliconix
Categories: Single FETs, MOSFETs
Quality Control: Learn More
The Vishay Siliconix LITTLE FOOT® SIA811DJ-T1-E3 is a P-Channel MOSFET designed for power management applications. This device features a 20V drain-source voltage (Vdss) and a continuous drain current capability of 4.5A at 25°C (Tc). The SIA811DJ-T1-E3 offers a maximum on-resistance (Rds On) of 94mOhm at 2.8A and 4.5V Vgs. It includes an integrated Schottky diode and can be driven with gate-source voltages ranging from 1.8V to 4.5V. The component is housed in a PowerPAK® SC-70-6 Dual surface mount package and operates across a temperature range of -55°C to 150°C. This MOSFET is suitable for use in automotive and industrial power control systems.
Additional Information
Series: LITTLE FOOT®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

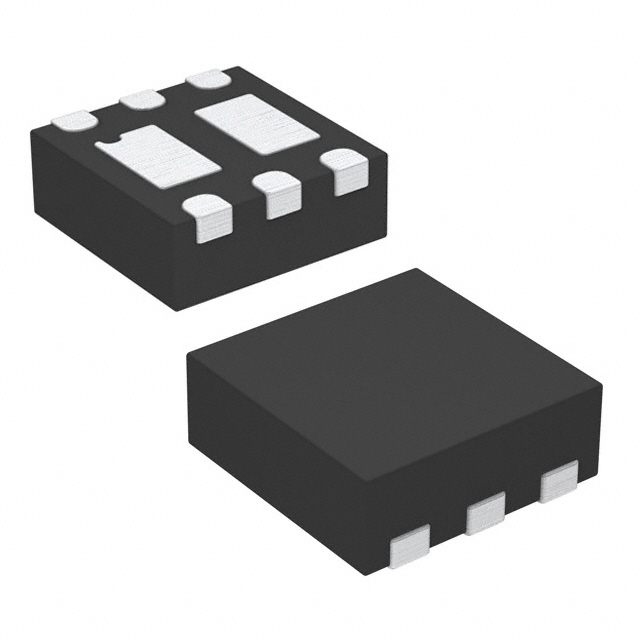

| Package / Case | PowerPAK® SC-70-6 Dual |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 4.5A (Tc) |
| Rds On (Max) @ Id, Vgs | 94mOhm @ 2.8A, 4.5V |
| FET Feature | Schottky Diode (Isolated) |
| Power Dissipation (Max) | 1.9W (Ta), 6.5W (Tc) |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | PowerPAK® SC-70-6 Dual |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Vgs (Max) | ±8V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 13 nC @ 8 V |
| Input Capacitance (Ciss) (Max) @ Vds | 355 pF @ 10 V |
