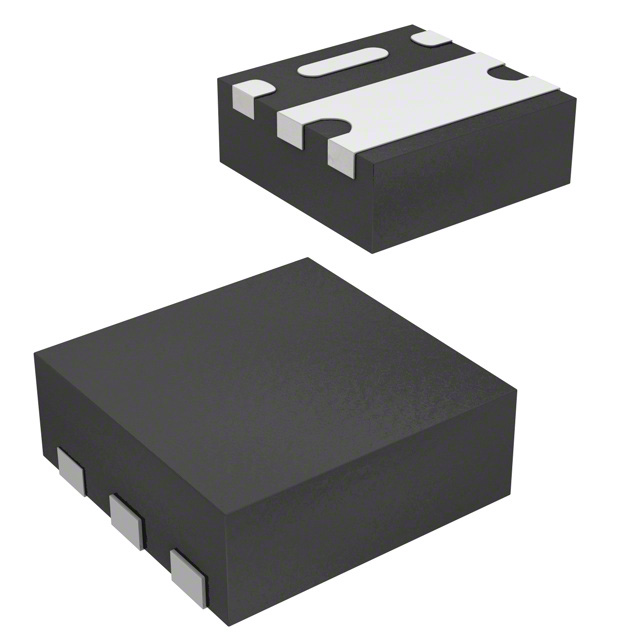

SIA477EDJ-T1-GE3
MOSFET P-CH 12V 12A PPAK SC70-6Manufacturer: Vishay Siliconix
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 12 V 12A (Tc) Surface Mount PowerPAK® SC-70-6
Additional Information
Series: TrenchFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | PowerPAK® SC-70-6 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 12A (Tc) |
| Rds On (Max) @ Id, Vgs | 14mOhm @ 7A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | PowerPAK® SC-70-6 |
| Drain to Source Voltage (Vdss) | 12 V |
| Gate Charge (Qg) (Max) @ Vgs | 87 nC @ 8 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2970 pF @ 6 V |
Request a Quote
