SI8483DB-T2-E1
MOSFET P-CH 12V 16A 6MICRO FOOTManufacturer: Vishay Siliconix
Categories: Single FETs, MOSFETs
Quality Control: Learn More

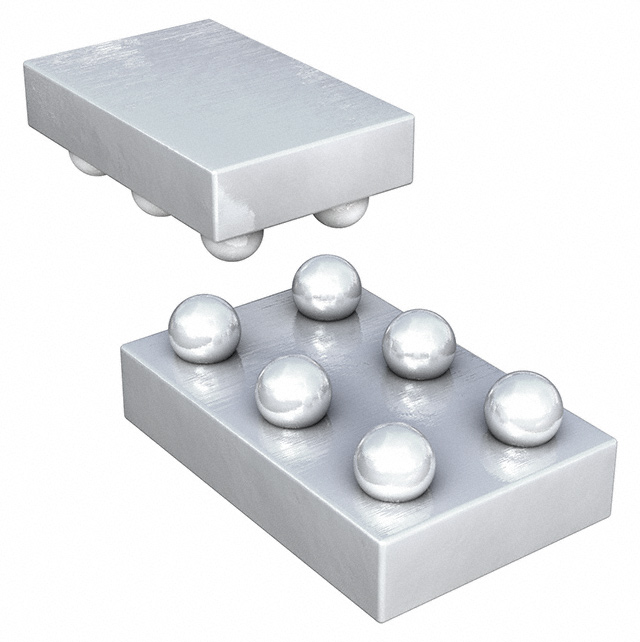

P-Channel 12 V 16A (Tc) 2.77W (Ta), 13W (Tc) Surface Mount 6-Micro Foot™ (1.5x1)
Additional Information
Series: TrenchFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 6-UFBGA |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 16A (Tc) |
| Rds On (Max) @ Id, Vgs | 26mOhm @ 1.5A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 2.77W (Ta), 13W (Tc) |
| Vgs(th) (Max) @ Id | 800mV @ 250µA |
| Supplier Device Package | 6-Micro Foot™ (1.5x1) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Vgs (Max) | ±10V |
| Drain to Source Voltage (Vdss) | 12 V |
| Gate Charge (Qg) (Max) @ Vgs | 65 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1840 pF @ 6 V |
