SI8472DB-T2-E1
MOSFET N-CH 20V 4MICRO FOOTManufacturer: Vishay Siliconix
Categories: Single FETs, MOSFETs
Quality Control: Learn More

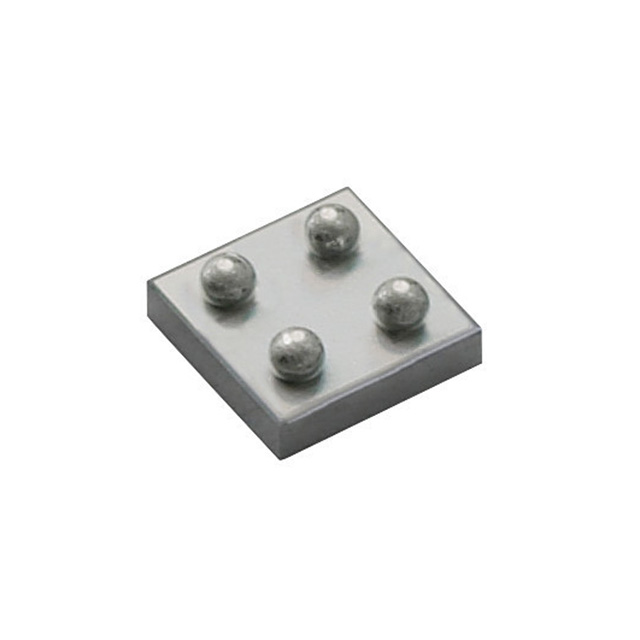

N-Channel 20 V 3.3A (Ta) 780mW (Ta) Surface Mount 4-MICRO FOOT® (1x1)
Additional Information
Series: TrenchFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 4-UFBGA |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 3.3A (Ta) |
| Rds On (Max) @ Id, Vgs | 44mOhm @ 1.5A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 780mW (Ta) |
| Vgs(th) (Max) @ Id | 900mV @ 250µA |
| Supplier Device Package | 4-MICRO FOOT® (1x1) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Vgs (Max) | ±8V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 18 nC @ 8 V |
| Input Capacitance (Ciss) (Max) @ Vds | 630 pF @ 10 V |
