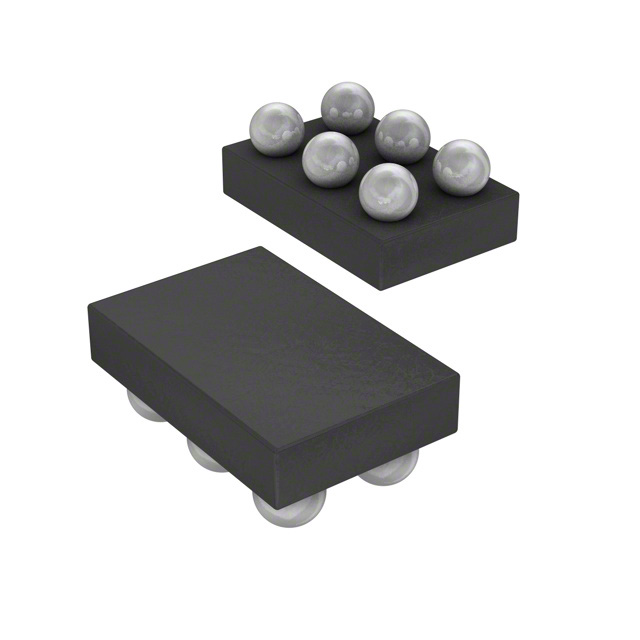

SI8447DB-T2-E1
MOSFET P-CH 20V 11A 6MICRO FOOTManufacturer: Vishay Siliconix
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Vishay Siliconix TrenchFET® P-Channel MOSFET, part number SI8447DB-T2-E1, offers a 20V drain-source breakdown voltage and a continuous drain current capability of 11A at 25°C (Tc). This device features a low on-resistance of 75mOhm maximum at 1A, 4.5V Vgs, and a gate charge of 25nC maximum at 10V Vgs. With a maximum power dissipation of 13W at 25°C (Tc) and 2.77W at 25°C (Ta), it is suitable for demanding applications. The device is housed in a compact 6-Micro Foot™ (1.5x1) package, specifically a 6-UFBGA, designed for surface mounting. Operating across a temperature range of -55°C to 150°C (TJ), this MOSFET is utilized in industries such as automotive and industrial power management. Its input capacitance (Ciss) is 600pF maximum at 10V Vds, and it supports a gate-source voltage range of ±12V. The threshold voltage (Vgs(th)) is a maximum of 1.2V at 250µA.
Additional Information
Series: TrenchFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UFBGA |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 11A (Tc) |
| Rds On (Max) @ Id, Vgs | 75mOhm @ 1A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 2.77W (Ta), 13W (Tc) |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA |
| Supplier Device Package | 6-Micro Foot™ (1.5x1) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.7V, 4.5V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 25 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 600 pF @ 10 V |
