SI7111EDN-T1-GE3
MOSFET P-CH 30V 60A PPAK1212-8Manufacturer: Vishay Siliconix
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 30 V 60A (Tc) 52W (Tc) Surface Mount PowerPAK® 1212-8
Additional Information
Series: TrenchFET® Gen IIIRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | PowerPAK® 1212-8 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 60A (Tc) |
| Rds On (Max) @ Id, Vgs | 8.55mOhm @ 15A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 52W (Tc) |
| Vgs(th) (Max) @ Id | 1.6V @ 250µA |
| Supplier Device Package | PowerPAK® 1212-8 |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 46 nC @ 2.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 5860 pF @ 15 V |
Request a Quote
Clients Also Buy

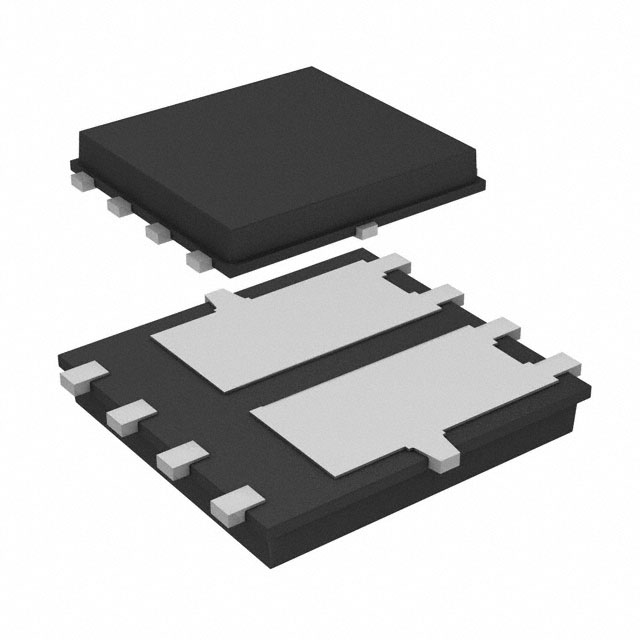

SIS903DN-T1-GE3
MOSFET 2P-CH 20V 6A PPAK 1212

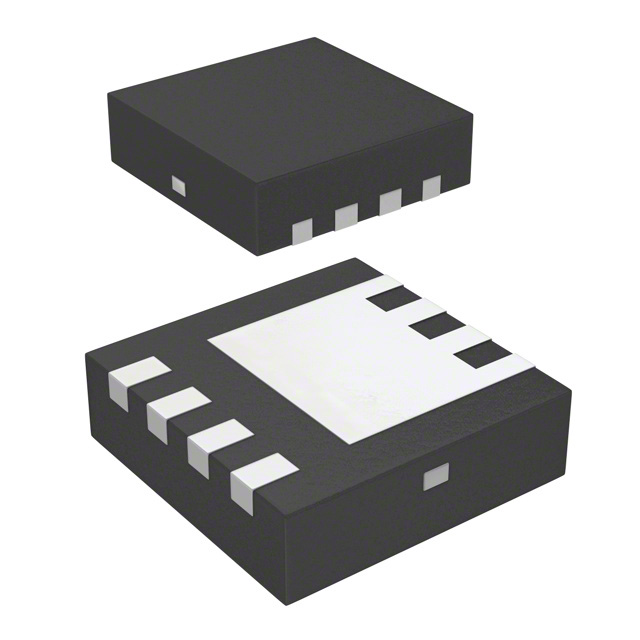

SISS65DN-T1-GE3
