SI5459DU-T1-GE3
MOSFET P-CH 20V 8A PPAKManufacturer: Vishay Siliconix
Categories: Single FETs, MOSFETs
Quality Control: Learn More

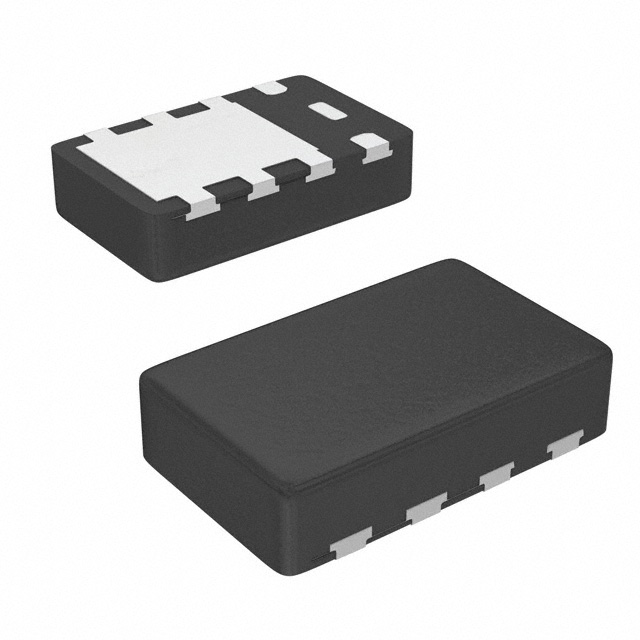

P-Channel 20 V 8A (Tc) 3.5W (Ta), 10.9W (Tc) Surface Mount PowerPAK® ChipFET™ Single
Additional Information
Series: TrenchFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | PowerPAK® ChipFET™ Single |
| Mounting Type | Surface Mount |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 8A (Tc) |
| Rds On (Max) @ Id, Vgs | 52mOhm @ 6.7A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 3.5W (Ta), 10.9W (Tc) |
| Vgs(th) (Max) @ Id | 1.4V @ 250µA |
| Supplier Device Package | PowerPAK® ChipFET™ Single |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 26 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 665 pF @ 10 V |
