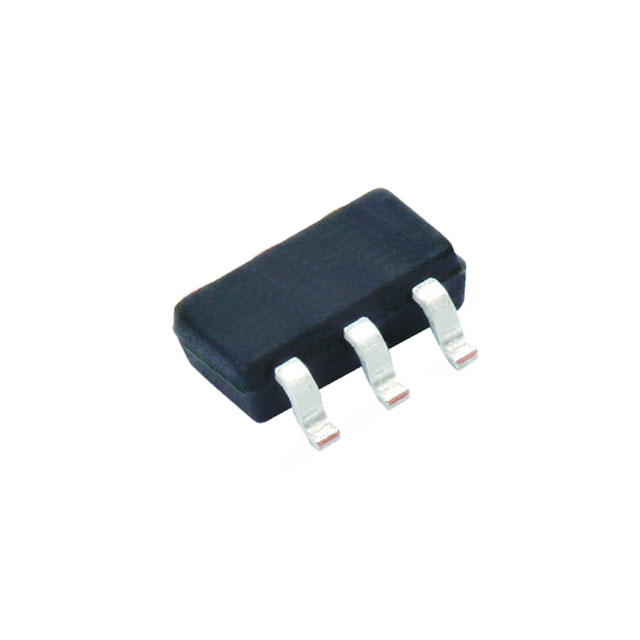

SI3483CDV-T1-BE3
P-CHANNEL 30-V (D-S) MOSFETManufacturer: Vishay Siliconix
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 30 V 6.1A (Ta), 8A (Tc) 2W (Ta), 4.2W (Tc) Surface Mount 6-TSOP
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 6.1A (Ta), 8A (Tc) |
| Rds On (Max) @ Id, Vgs | 34mOhm @ 6.1A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2W (Ta), 4.2W (Tc) |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | 6-TSOP |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 33 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1000 pF @ 15 V |
