SI3476DV-T1-GE3
MOSFET N-CH 80V 4.6A 6TSOPManufacturer: Vishay Siliconix
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 80 V 4.6A (Tc) 2W (Ta), 3.6W (Tc) Surface Mount 6-TSOP
Additional Information
Series: TrenchFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 4.6A (Tc) |
| Rds On (Max) @ Id, Vgs | 93mOhm @ 3.5A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2W (Ta), 3.6W (Tc) |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | 6-TSOP |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 80 V |
| Gate Charge (Qg) (Max) @ Vgs | 7.5 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 195 pF @ 40 V |
Request a Quote
Clients Also Buy
SI2365EDS-T1-GE3
MOSFET P-CH 20V 5.9A TO236
SI2302CDS-T1-E3
MOSFET N-CH 20V 2.6A SOT23-3

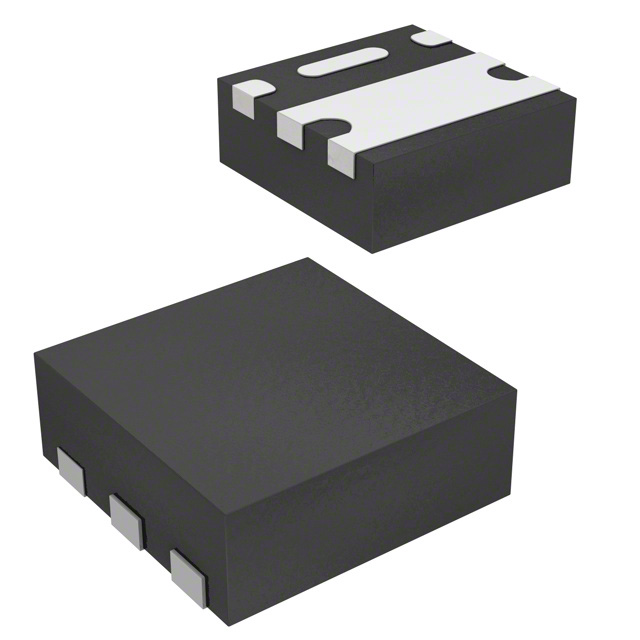

SIA449DJ-T1-GE3
