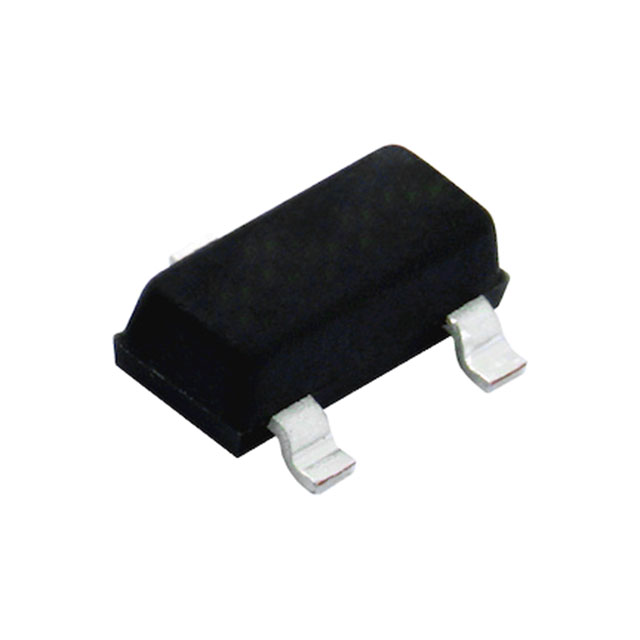

SI2342DS-T1-BE3
N-CHANNEL 8-V (D-S) MOSFETManufacturer: Vishay Siliconix
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 8 V 6A (Ta), 6A (Tc) 1.3W (Ta), 2.5W (Tc) Surface Mount SOT-23-3 (TO-236)
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 6A (Ta), 6A (Tc) |
| Rds On (Max) @ Id, Vgs | 17mOhm @ 7.2A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 1.3W (Ta), 2.5W (Tc) |
| Vgs(th) (Max) @ Id | 800mV @ 250µA |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.2V, 4.5V |
| Vgs (Max) | ±5V |
| Drain to Source Voltage (Vdss) | 8 V |
| Gate Charge (Qg) (Max) @ Vgs | 15.8 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1070 pF @ 4 V |
Request a Quote
