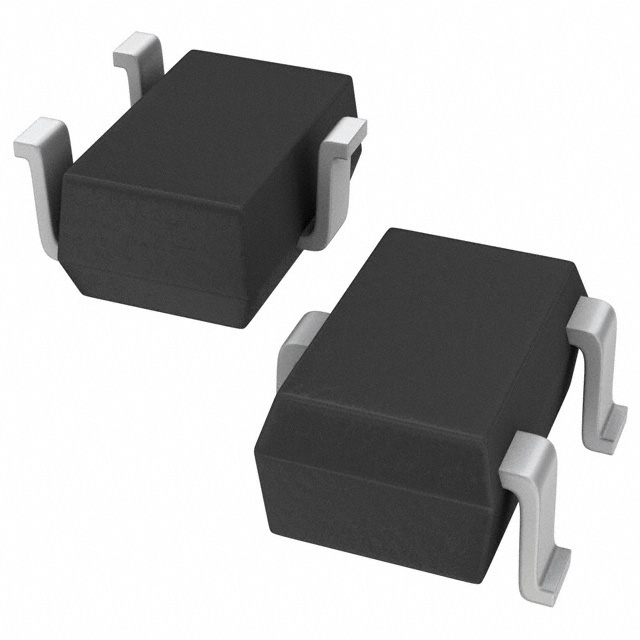

SI1317DL-T1-BE3
MOSFET P-CH 20V 1.4A/1.4A SC70-3Manufacturer: Vishay Siliconix
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 20 V 1.4A (Ta), 1.4A (Tc) 400mW (Ta), 500mW (Tc) Surface Mount SC-70-3
Additional Information
Series: TrenchFET®RoHS Status: unknownManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-70, SOT-323 |
| Mounting Type | Surface Mount |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 1.4A (Ta), 1.4A (Tc) |
| Rds On (Max) @ Id, Vgs | 150mOhm @ 1.4A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 400mW (Ta), 500mW (Tc) |
| Vgs(th) (Max) @ Id | 800mV @ 250µA |
| Supplier Device Package | SC-70-3 |
| Vgs (Max) | ±8V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 6.5 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 272 pF @ 10 V |
