IRFPS38N60LPBF

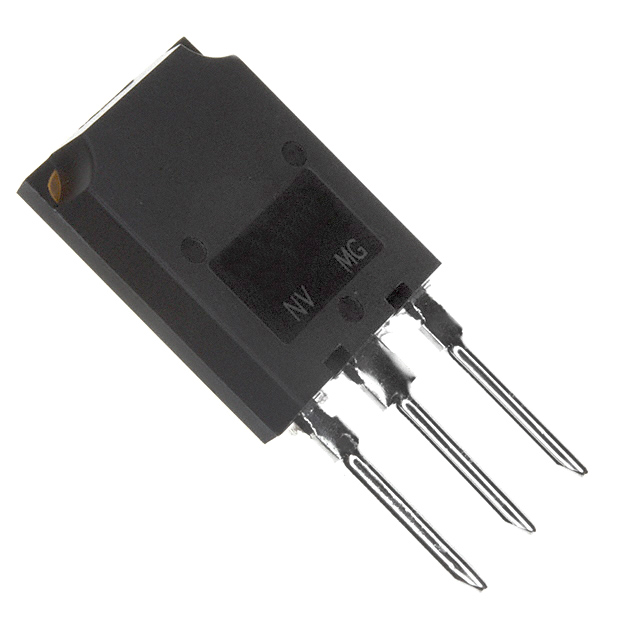

MOSFET N-CH 600V 38A SUPER247Manufacturer: Vishay Siliconix
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Vishay Siliconix IRFPS38N60LPBF is a high-performance N-Channel Power MOSFET designed for demanding applications. This component features a 600V drain-source breakdown voltage (Vds) and a continuous drain current (Id) of 38A at 25°C. With a maximum power dissipation of 540W (Tc) and a low on-resistance (Rds On) of 150mOhm at 23A and 10V gate drive, it ensures efficient power handling. The device utilizes advanced MOSFET technology, offering a maximum gate charge (Qg) of 320 nC at 10V and input capacitance (Ciss) of 7990 pF at 25V. The IRFPS38N60LPBF is housed in a through-hole SUPER-247™ (TO-274AA) package, facilitating robust thermal management. Its operating temperature range is -55°C to 150°C (TJ). This MOSFET is suitable for power supply, industrial motor control, and high-voltage switching applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-274AA |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 38A (Tc) |
| Rds On (Max) @ Id, Vgs | 150mOhm @ 23A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 540W (Tc) |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Supplier Device Package | SUPER-247™ (TO-274AA) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 600 V |
| Gate Charge (Qg) (Max) @ Vgs | 320 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 7990 pF @ 25 V |
