2N6660-2
MOSFET N-CH 60V 990MA TO205ADManufacturer: Vishay Siliconix
Categories: Single FETs, MOSFETs
Quality Control: Learn More

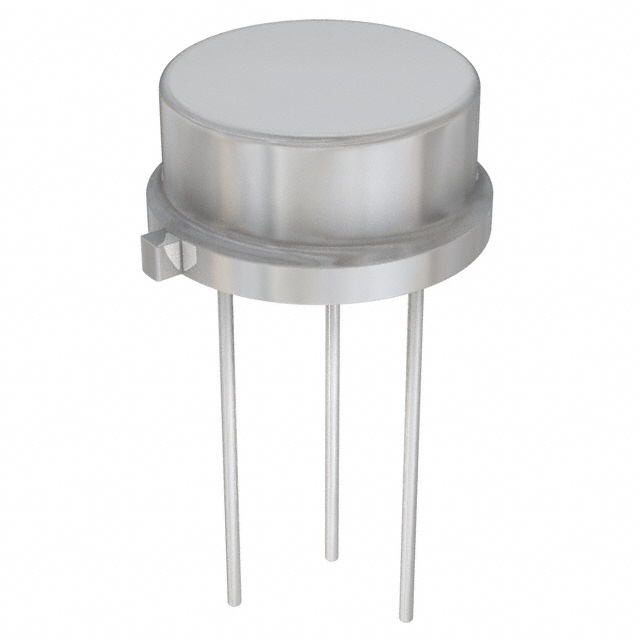

Vishay Siliconix MOSFET, N-Channel, part number 2N6660-2. This through-hole component features a 60V drain-source voltage and a continuous drain current of 990mA at 25°C (Tc). The device is housed in a TO-205AD (TO-39) metal can package, offering a maximum power dissipation of 725mW (Ta) or 6.25W (Tc). Key electrical characteristics include a maximum on-resistance of 3 Ohm at 1A, 10V, and input capacitance of 50 pF at 25V. Operating temperature range is -55°C to 150°C. This Vishay Siliconix MOSFET is suitable for applications in industrial and consumer electronics.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-205AD, TO-39-3 Metal Can |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 990mA (Tc) |
| Rds On (Max) @ Id, Vgs | 3Ohm @ 1A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 725mW (Ta), 6.25W (Tc) |
| Vgs(th) (Max) @ Id | 2V @ 1mA |
| Supplier Device Package | TO-205AD (TO-39) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Input Capacitance (Ciss) (Max) @ Vds | 50 pF @ 25 V |
