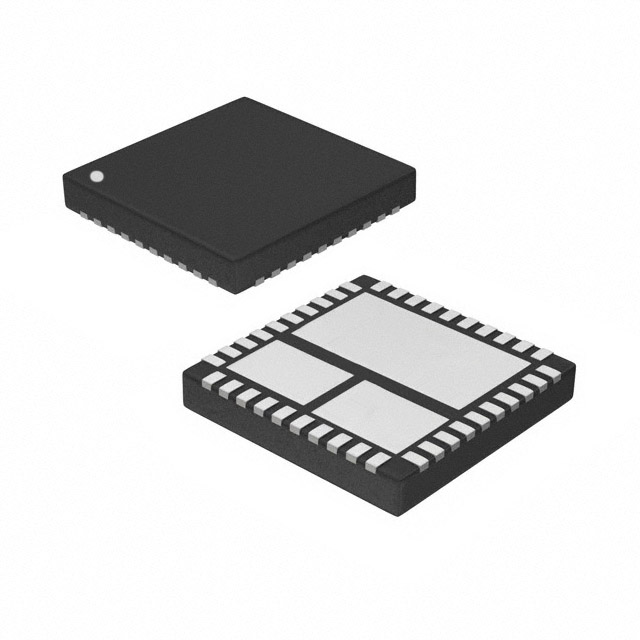

SIC780CD-T1-GE3
IC HALF BRIDGE DRIVER 50A PPAKManufacturer: Vishay Siliconix
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Vishay Siliconix SIC780CD-T1-GE3 is a half-bridge DrMOS power stage designed for high-efficiency synchronous buck converters. This device integrates a high-side and low-side MOSFET with a driver in a single PowerPAK® MLP66-40 package. It features a bootstrap circuit and diode emulation for optimized performance. The SIC780CD-T1-GE3 offers a 50A output current capability and operates within a voltage range of 4.5V to 18V for the load and 4.5V to 5.5V for the supply. Built-in fault protection includes over-temperature, shoot-through, and undervoltage lockout (UVLO). This component is suitable for applications in computing, industrial power, and automotive systems requiring compact and efficient power delivery. It is supplied in a tape and reel package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit, Diode Emulation, Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | PowerPAK® MLP66-40 |
| Mounting Type | Surface Mount |
| Interface | PWM |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge |
| Voltage - Supply | 4.5V ~ 5.5V |
| Rds On (Typ) | - |
| Applications | Synchronous Buck Converters |
| Current - Output / Channel | 50A |
| Current - Peak Output | - |
| Technology | DrMOS |
| Voltage - Load | 4.5V ~ 18V |
| Supplier Device Package | PowerPAK® MLP66-40 |
| Fault Protection | Over Temperature, Shoot-Through, UVLO |
| Load Type | Inductive |
