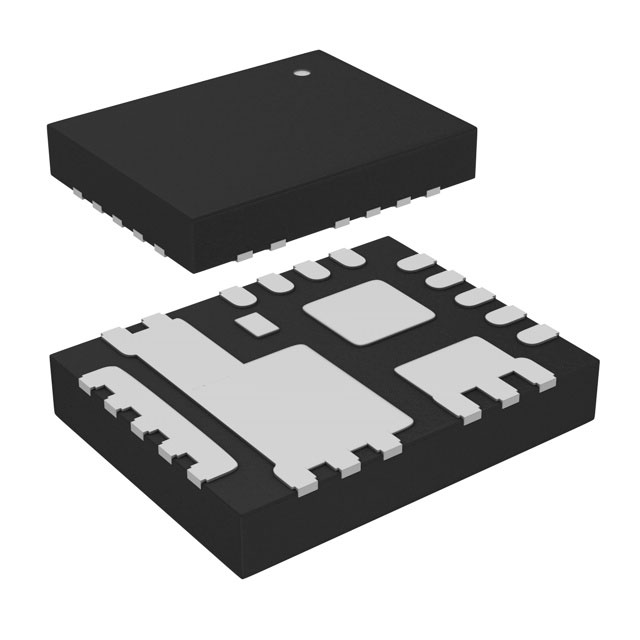

SIC762CD-T1-GE3
IC HALF BRIDGE DRIVER 35A PPAKManufacturer: Vishay Siliconix
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Vishay Siliconix SIC762CD-T1-GE3 is a DrMOS half-bridge driver designed for high-frequency synchronous buck converters. This advanced power stage integrates a high-side and low-side MOSFET with a driver IC into the PowerPAK® MLP66-40 package, enabling efficient operation and reduced component count. It delivers 35A output current and features a bootstrap circuit for high-side driver operation and diode emulation for improved light-load efficiency. The device includes robust fault protection mechanisms, including over-temperature, shoot-through, and UVLO. Applications for this component span automotive power systems, industrial power supplies, and high-density DC-DC conversion. The SIC762CD-T1-GE3 is supplied in a Tape & Reel (TR) package for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit, Diode Emulation, Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | PowerPAK® MLP66-40 |
| Mounting Type | Surface Mount |
| Interface | PWM |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge |
| Voltage - Supply | 4.5V ~ 5.5V |
| Rds On (Typ) | - |
| Applications | Synchronous Buck Converters |
| Current - Output / Channel | 35A |
| Current - Peak Output | - |
| Technology | DrMOS |
| Voltage - Load | 3V ~ 24V |
| Supplier Device Package | PowerPAK® MLP66-40 |
| Fault Protection | Over Temperature, Shoot-Through, UVLO |
| Load Type | Inductive |
