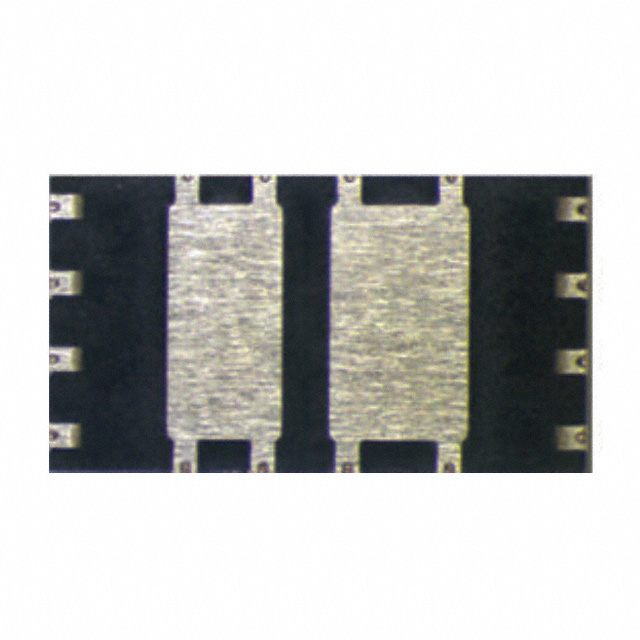

SQUN702E-T1_GE3
MOSFET N/P-CH 40V/200V 30A DIEManufacturer: Vishay Siliconix
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 40V, 200V 30A (Tc), 20A (Tc) 48W (Tc), 60W (Tc) Surface Mount, Wettable Flank Die
Additional Information
Series: TrenchFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Die |
| Mounting Type | Surface Mount, Wettable Flank |
| Configuration | N and P-Channel, Common Drain |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 48W (Tc), 60W (Tc) |
| Drain to Source Voltage (Vdss) | 40V, 200V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Tc), 20A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 1474pF @ 20V, 1450pF @ 20V, 1302pF @ 100V |
| Rds On (Max) @ Id, Vgs | 9.2mOhm @ 9.8A, 10V, 60mOhm @ 5A, 10V, 30mOhm @ 6A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 23nC @ 20V, 14nC @ 20V, 30.2nC @ 100V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA, 3.5V @ 250µA |
| Supplier Device Package | Die |
| Grade | Automotive |
| Qualification | AEC-Q101 |
