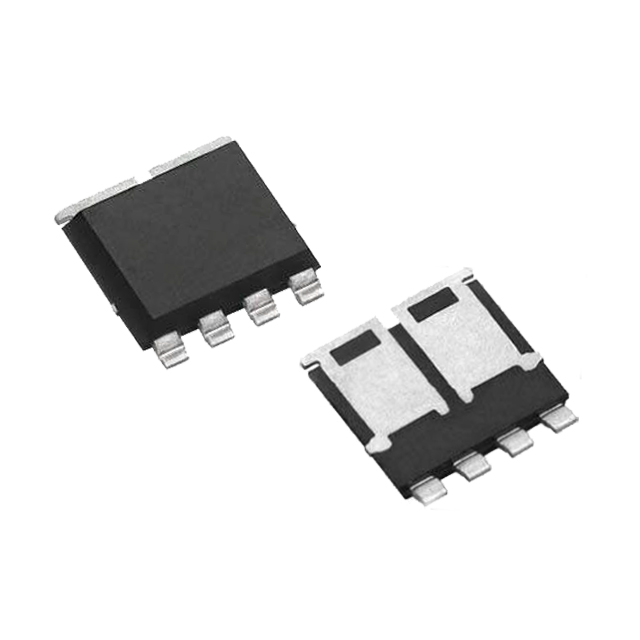

SQJQ960EL-T1_GE3
MOSFET 2N-CH 60V 63A PPAK8X8Manufacturer: Vishay Siliconix
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 60V 63A (Tc) 71W Surface Mount PowerPAK® 8 x 8 Dual
Additional Information
Series: TrenchFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | PowerPAK® 8 x 8 Dual |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 71W |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 63A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 1950pF @ 25V |
| Rds On (Max) @ Id, Vgs | 9mOhm @ 10A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 24nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | PowerPAK® 8 x 8 Dual |
| Grade | Automotive |
| Qualification | AEC-Q101 |
