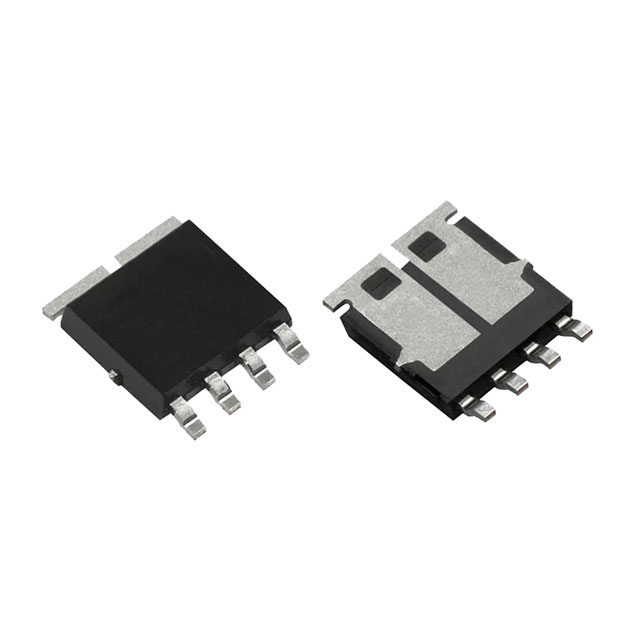

SQJB70EP-T1_BE3
MOSFET 2N-CH 100V 11.3A PPAK SO8Manufacturer: Vishay Siliconix
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 100V 11.3A (Tc) 27W (Tc) Surface Mount PowerPAK® SO-8 Dual
Additional Information
Series: TrenchFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | PowerPAK® SO-8 Dual |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 27W (Tc) |
| Drain to Source Voltage (Vdss) | 100V |
| Current - Continuous Drain (Id) @ 25°C | 11.3A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 220pF @ 25V |
| Rds On (Max) @ Id, Vgs | 95mOhm @ 4A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 7nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 3.5V @ 250µA |
| Supplier Device Package | PowerPAK® SO-8 Dual |
| Grade | Automotive |
| Qualification | AEC-Q101 |
