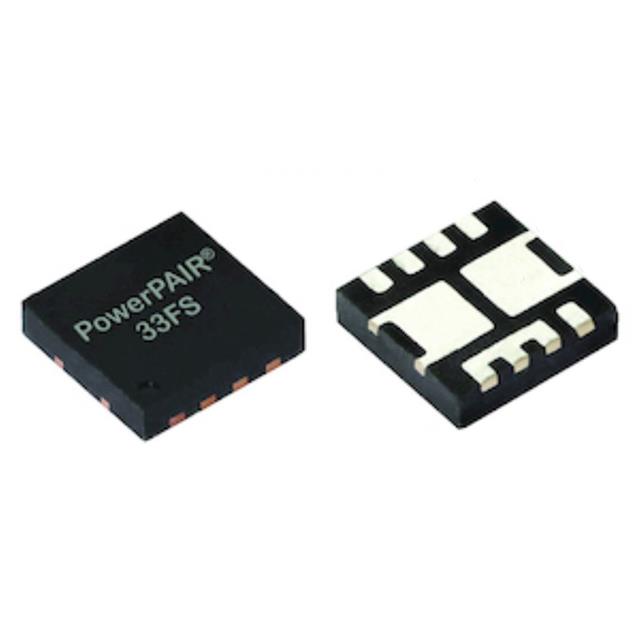

SIZF4800LDT-T1-GE3
MOSFET 2N-CH 80V 10A PWRPAIRManufacturer: Vishay Siliconix
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 80V 10A (Ta), 36A (Tc) 4.5W (Ta), 56.8W (Tc) Surface Mount PowerPAIR® 3x3FS
Additional Information
Series: TrenchFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 12-PowerPair™ |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Half Bridge) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 4.5W (Ta), 56.8W (Tc) |
| Drain to Source Voltage (Vdss) | 80V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta), 36A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 950pF @ 40V |
| Rds On (Max) @ Id, Vgs | 19mOhm @ 10A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 23nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Supplier Device Package | PowerPAIR® 3x3FS |
