SIZ980DT-T1-GE3
MOSFET 2N-CH 30V 20A 8PWRPAIRManufacturer: Vishay Siliconix
Categories: FET, MOSFET Arrays
Quality Control: Learn More

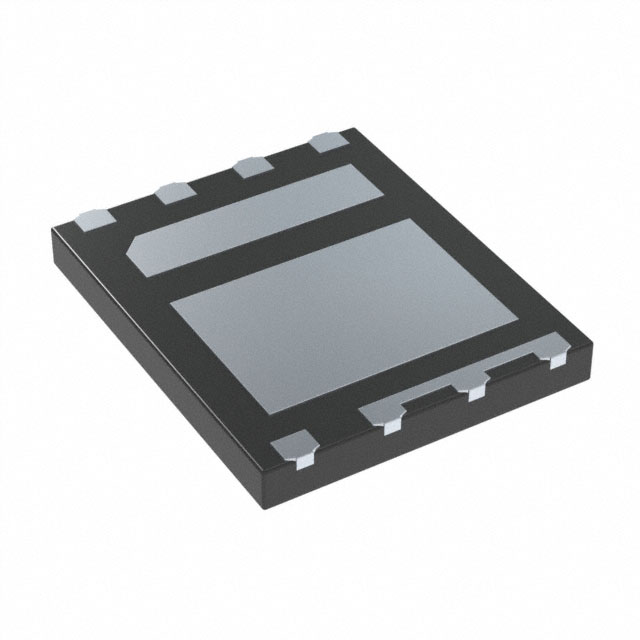

Mosfet Array 30V 20A (Tc), 60A (Tc) 20W, 66W Surface Mount 8-PowerPair® (6x5)
Additional Information
Series: TrenchFET®RoHS Status: unknownManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerWDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual), Schottky |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 20W, 66W |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc), 60A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 930pF @ 15V, 4600pF @ 15V |
| Rds On (Max) @ Id, Vgs | 6.7mOhm @ 15A, 10V, 1.6mOhm @ 19A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 8.1nC @ 4.5V, 35nC @ 4.5V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Supplier Device Package | 8-PowerPair® (6x5) |
