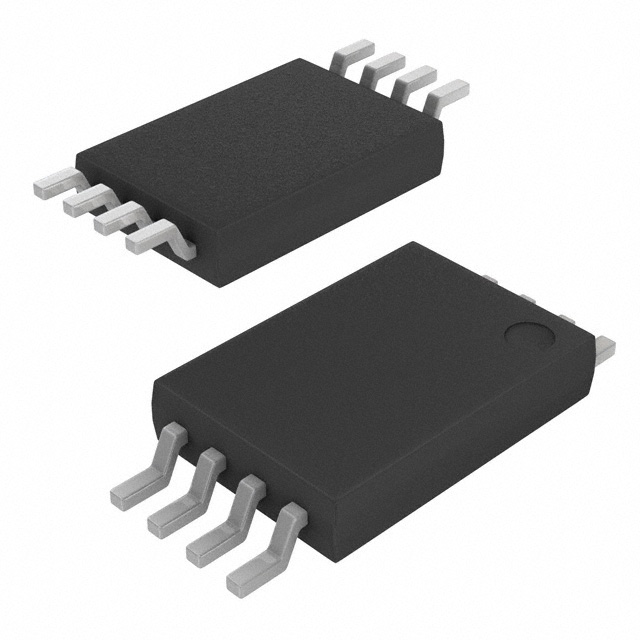

SI6562CDQ-T1-BE3
MOSFET N/P-CH 20V 5.7A 8TSSOPManufacturer: Vishay Siliconix
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 20V 5.7A (Ta), 6.7A (Tc), 5.1A (Ta), 6.1A (Tc) 1.1W (Ta), 1.6W (Tc), 1.2W (Ta), 1.7W (Tc) Surface Mount 8-TSSOP
Additional Information
Series: TrenchFET®RoHS Status: unknownManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Configuration | N and P-Channel |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1.1W (Ta), 1.6W (Tc), 1.2W (Ta), 1.7W (Tc) |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 5.7A (Ta), 6.7A (Tc), 5.1A (Ta), 6.1A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 850pF @ 10V, 1200pF @ 10V |
| Rds On (Max) @ Id, Vgs | 22mOhm @ 5.7A, 4.5V, 30mOhm @ 5.1A, 4.5V |
| Gate Charge (Qg) (Max) @ Vgs | 23nC @ 10V, 51nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Supplier Device Package | 8-TSSOP |
Request a Quote
