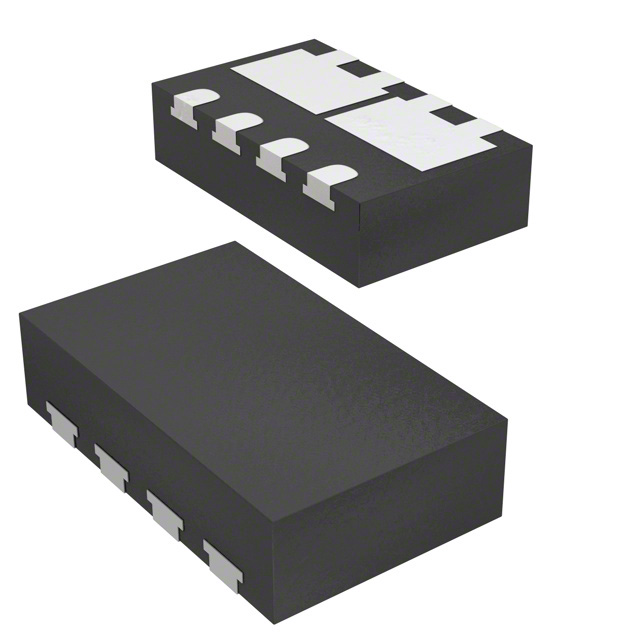

SI5936DU-T1-GE3
MOSFET 2N-CH 30V 6A PPAK CHIPFETManufacturer: Vishay Siliconix
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 30V 6A 10.4W Surface Mount PowerPAK® ChipFet Dual
Additional Information
Series: TrenchFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | PowerPAK® ChipFET™ Dual |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 10.4W |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 6A |
| Input Capacitance (Ciss) (Max) @ Vds | 320pF @ 15V |
| Rds On (Max) @ Id, Vgs | 30mOhm @ 5A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 11nC @ 10V |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Supplier Device Package | PowerPAK® ChipFet Dual |
