DG9636EN-T1-E4

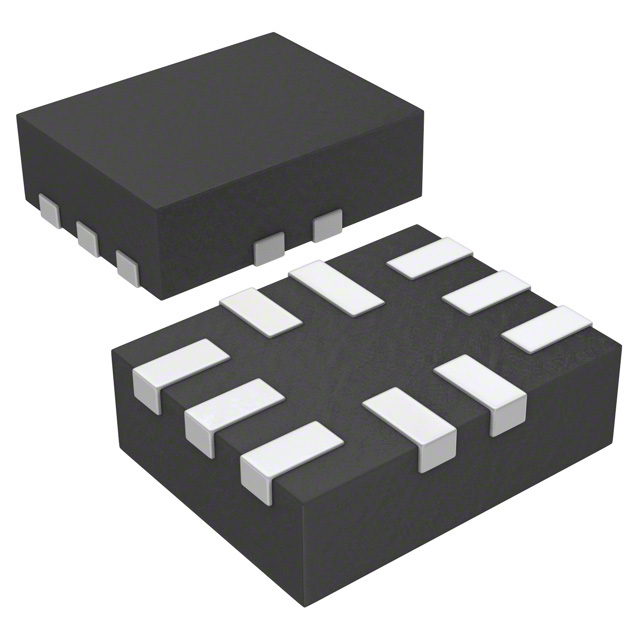

IC SW SPDTX2 110OHM 10MINIQFNManufacturer: Vishay Siliconix
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
The Vishay Siliconix DG9636EN-T1-E4 is a dual, single-pole double-throw (SPDT) analog switch. This component features low on-resistance of 110 Ohms maximum and excellent channel-to-channel matching of 4 Ohms. With a -3dB bandwidth of 720MHz and low charge injection of 23.5pC, it is suitable for applications requiring high-speed signal routing. The device operates from a single supply voltage ranging from 2.7V to 12V. Packaged in a compact 10-miniQFN (1.4x1.8) format, it is supplied on tape and reel for efficient surface mounting. Its performance characteristics make it applicable in areas such as audio and video switching, battery-powered equipment, and general-purpose signal switching. The operating temperature range is -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-UFQFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 110Ohm |
| -3db Bandwidth | 720MHz |
| Supplier Device Package | 10-miniQFN (1.4x1.8) |
| Voltage - Supply, Single (V+) | 2.7V ~ 12V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 23.5pC |
| Crosstalk | -67dB @ 10MHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 4Ohm |
| Switch Time (Ton, Toff) (Max) | 70ns, 55ns |
| Channel Capacitance (CS(off), CD(off)) | 2pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Number of Circuits | 2 |
