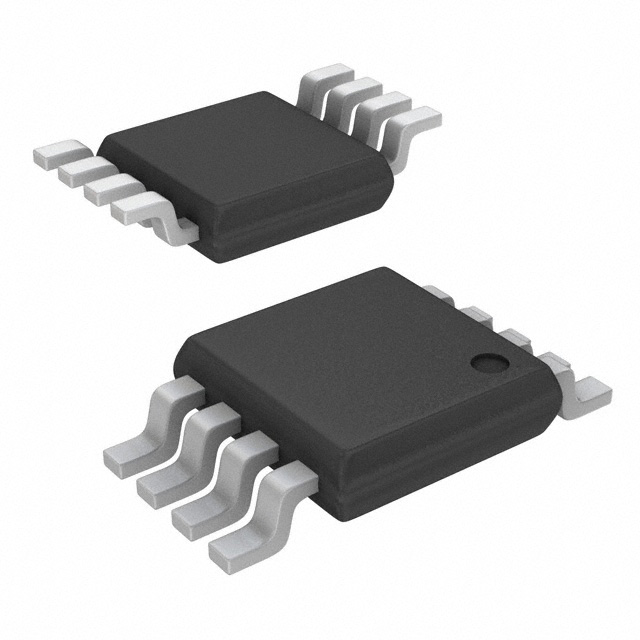

DG9233EDQ-T1-GE3
IC SWITCH SPST-NOX2 25OHM 8MSOPManufacturer: Vishay Siliconix
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
2 Circuit IC Switch 1:1 25Ohm 8-MSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 25Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 8-MSOP |
| Voltage - Supply, Single (V+) | 2.7V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | -0.78pC |
| Crosstalk | -108dB @ 1MHz |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 400mOhm |
| Switch Time (Ton, Toff) (Max) | 75ns, 50ns |
| Channel Capacitance (CS(off), CD(off)) | 3.8pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Number of Circuits | 2 |
Request a Quote
