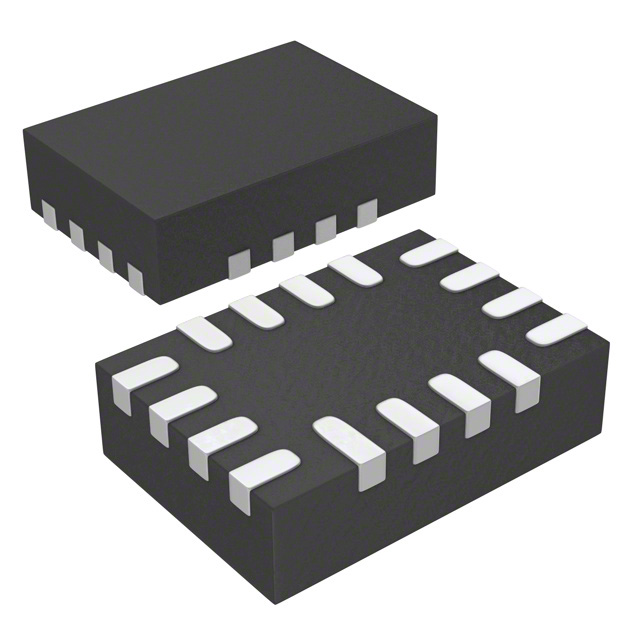

DG508BEN-T1-GE4
IC MUX 8:1 380OHM 16MINIQFNManufacturer: Vishay Siliconix
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
1 Circuit IC Switch 8:1 380Ohm 16-miniQFN (1.8x2.6)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFQFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 380Ohm |
| -3db Bandwidth | 250MHz |
| Supplier Device Package | 16-miniQFN (1.8x2.6) |
| Voltage - Supply, Single (V+) | 12V ~ 44V |
| Voltage - Supply, Dual (V±) | ±5V ~ 20V |
| Charge Injection | 2pC |
| Crosstalk | -88dB @ 1MHz |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 10Ohm |
| Switch Time (Ton, Toff) (Max) | 250ns, 240ns |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 13pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Number of Circuits | 1 |
