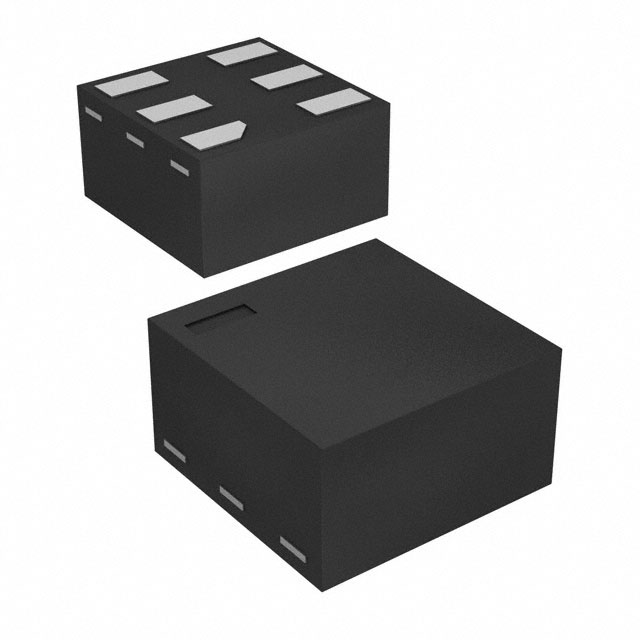

DG4157EDN-T1-GE4
IC SWITCH SPDT X 1 1.2OHM 6UDFNManufacturer: Vishay Siliconix
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
1 Circuit IC Switch 2:1 1.2Ohm 6-µDFN (1x1)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-XFDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| On-State Resistance (Max) | 1.2Ohm |
| -3db Bandwidth | 152MHz |
| Supplier Device Package | 6-µDFN (1x1) |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | -5pC |
| Crosstalk | -41dB @ 10MHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 120mOhm (Max) |
| Switch Time (Ton, Toff) (Max) | 32ns, 28ns |
| Channel Capacitance (CS(off), CD(off)) | - |
| Current - Leakage (IS(off)) (Max) | 3nA |
| Number of Circuits | 1 |
Request a Quote
