DG411HSDN-T1-E4
IC SWITCH SPST-NCX4 35OHM 16QFNManufacturer: Vishay Siliconix
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More

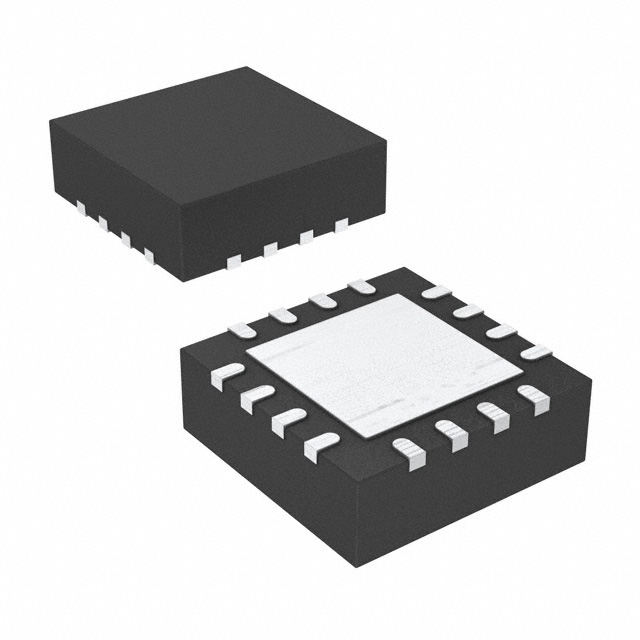

4 Circuit IC Switch 1:1 35Ohm 16-QFN (4x4)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 35Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 16-QFN (4x4) |
| Voltage - Supply, Single (V+) | 13V ~ 44V |
| Voltage - Supply, Dual (V±) | ±5V ~ 20V |
| Charge Injection | 22pC |
| Crosstalk | -88dB @ 1MHz |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | - |
| Switch Time (Ton, Toff) (Max) | 105ns, 80ns |
| Channel Capacitance (CS(off), CD(off)) | 12pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Number of Circuits | 4 |
Request a Quote
