DG2522DN-T1-E4

IC SWITCH SP3TX1 1.1OHM 8MINIQFN

Manufacturer: Vishay Siliconix

Categories: Analog Switches, Multiplexers, Demultiplexers

Quality Control: Learn More

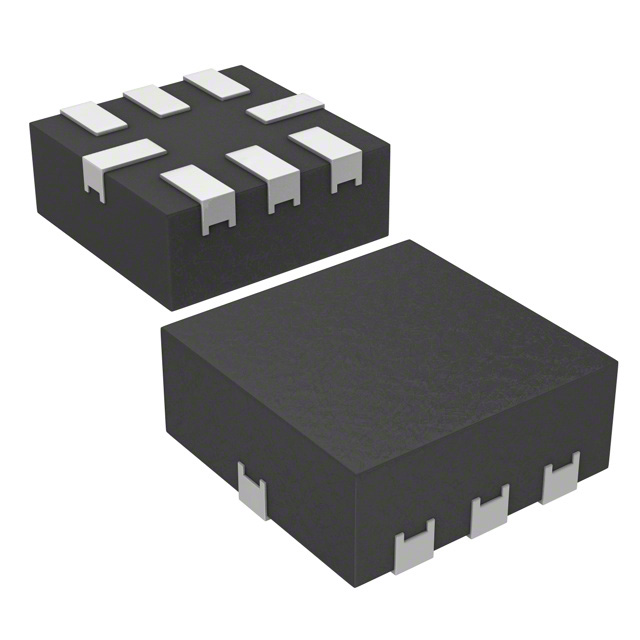

Vishay Siliconix DG2522DN-T1-E4 is a single-circuit SP3T analog switch designed for 1.6V to 5.5V single supply operation. This device features low on-resistance of 1.1 Ohm maximum, with channel-to-channel matching less than 100 mOhm. The DG2522DN-T1-E4 offers a -3dB bandwidth of 105MHz and exhibits excellent off-state isolation with crosstalk of -64dB at 1MHz. Charge injection is minimized at 27pC, and leakage current is a maximum of 20nA. Switching times are typically 75ns on and 60ns off. Packaged in an 8-miniQFN (1.4x1.4) surface-mount configuration, this component is suitable for applications in consumer electronics and industrial control systems.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)
Technical Details:
PackagingTape & Reel (TR)
Package / Case8-UFQFN
Mounting TypeSurface Mount
Operating Temperature-40°C ~ 85°C (TA)
On-State Resistance (Max)1.1Ohm
-3db Bandwidth105MHz
Supplier Device Package8-miniQFN (1.4x1.4)
Voltage - Supply, Single (V+)1.6V ~ 5.5V
Voltage - Supply, Dual (V±)-
Charge Injection27pC
Crosstalk-64dB @ 1MHz
Switch CircuitSP3T
Multiplexer/Demultiplexer Circuit3:1
Channel-to-Channel Matching (ÃŽ”Ron)100mOhm (Max)
Switch Time (Ton, Toff) (Max)75ns, 60ns
Channel Capacitance (CS(off), CD(off))51pF
Current - Leakage (IS(off)) (Max)20nA
Number of Circuits1
