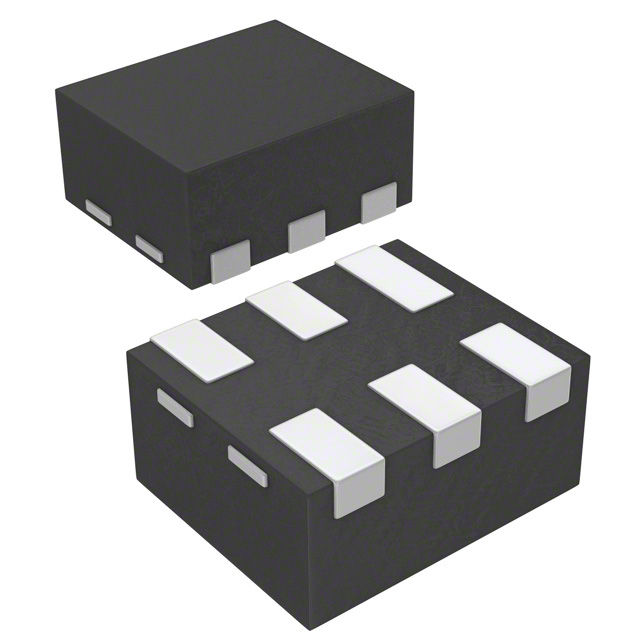

DG2513DN-T1-E4
IC SW SPST-NOX1 1.3OHM 6MINIQFNManufacturer: Vishay Siliconix
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Vishay Siliconix DG2513DN-T1-E4 is a single-pole, single-throw, normally open analog switch. This component offers a low on-resistance of 1.3 Ohm maximum and tight channel-to-channel matching of 150 mOhm maximum. Designed for efficient signal routing, it features a charge injection of 14 pC and channel capacitance of 19 pF. Operating over a single supply voltage range of 1.8V to 5.5V, the DG2513DN-T1-E4 is suitable for applications requiring minimal signal distortion. Its compact 6-miniQFN (1x1.2) package, supplied on tape and reel, facilitates surface mounting in space-constrained designs. Typical applications include signal switching in consumer electronics, industrial control systems, and test and measurement equipment. The device operates within an ambient temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UFDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 1.3Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 6-miniQFN (1x1.2) |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 14pC |
| Crosstalk | -64dB @ 1MHz |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 150mOhm (Max) |
| Switch Time (Ton, Toff) (Max) | 35ns, 31ns |
| Channel Capacitance (CS(off), CD(off)) | 19pF |
| Current - Leakage (IS(off)) (Max) | 2nA |
| Number of Circuits | 1 |
