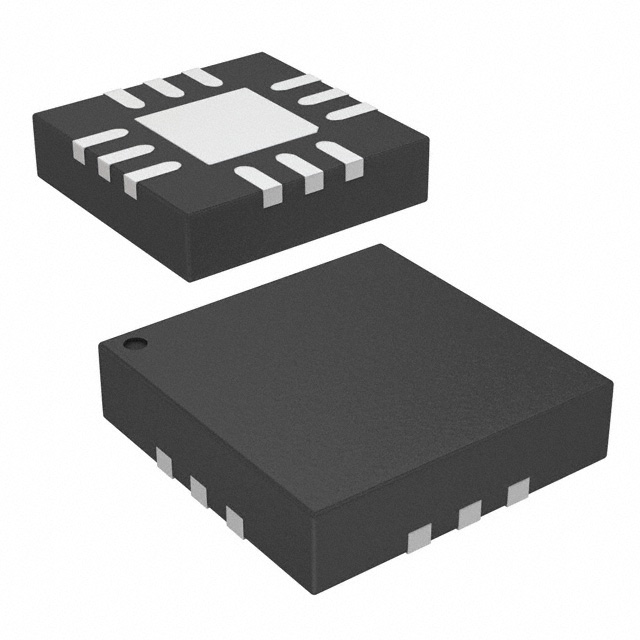

DG2034DN-T1-E4
IC SWITCH SP4T X 1 5.5OHM 12QFNManufacturer: Vishay Siliconix
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
The Vishay Siliconix DG2034DN-T1-E4 is a single-pole, four-throw (SP4T) analog switch. This device features a low on-resistance of 5.5 Ohms, with channel-to-channel matching (?Ron) of 160 mOhms. It operates from a single supply voltage ranging from 1.8V to 5.5V. The DG2034DN-T1-E4 offers a fast switch time with typical turn-on and turn-off times of 30ns and 20ns respectively. Channel capacitance is specified at 13pF (off) and 43pF (off). Crosstalk is rated at -77dB at 1MHz, and leakage current (IS(off)) is a maximum of 1nA. The device is supplied in a 12-QFN (3x3) package, suitable for surface mounting. Its performance characteristics make it suitable for applications in consumer electronics, industrial control, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 5.5Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 12-QFN (3x3) |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | -4.4pC |
| Crosstalk | -77dB @ 1MHz |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 160mOhm |
| Switch Time (Ton, Toff) (Max) | 30ns, 20ns |
| Channel Capacitance (CS(off), CD(off)) | 13pF, 43pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Number of Circuits | 1 |
