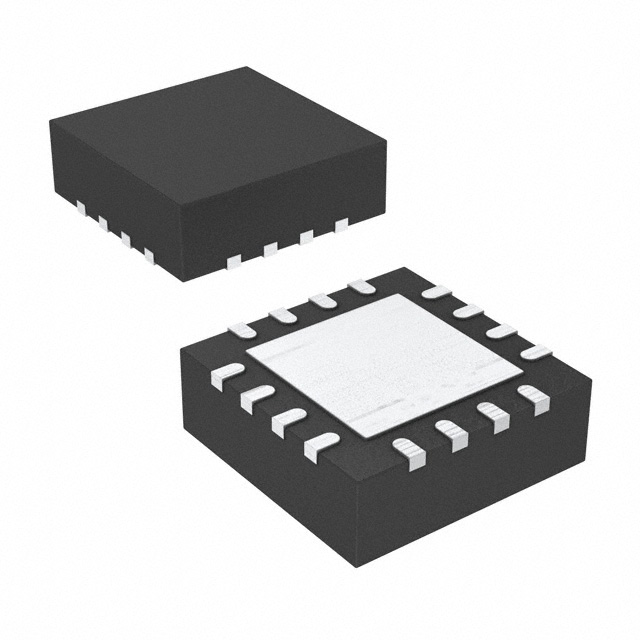

DG1409EEN-T1-GE4
IC MUX DUAL 4:1 4.2OHM 16QFNManufacturer: Vishay Siliconix
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
1 Circuit IC Switch 4:1 4.2Ohm 16-QFN (4x4)
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 4.2Ohm |
| -3db Bandwidth | 90MHz |
| Supplier Device Package | 16-QFN (4x4) |
| Voltage - Supply, Single (V+) | 4.5V ~ 24V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 16.5V |
| Charge Injection | 103pC |
| Crosstalk | -64dB @ 1MHz |
| Switch Circuit | DP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 270mOhm |
| Switch Time (Ton, Toff) (Max) | 130ns, 105ns |
| Channel Capacitance (CS(off), CD(off)) | 13pF, 43pF |
| Current - Leakage (IS(off)) (Max) | 550pA |
| Number of Circuits | 1 |
