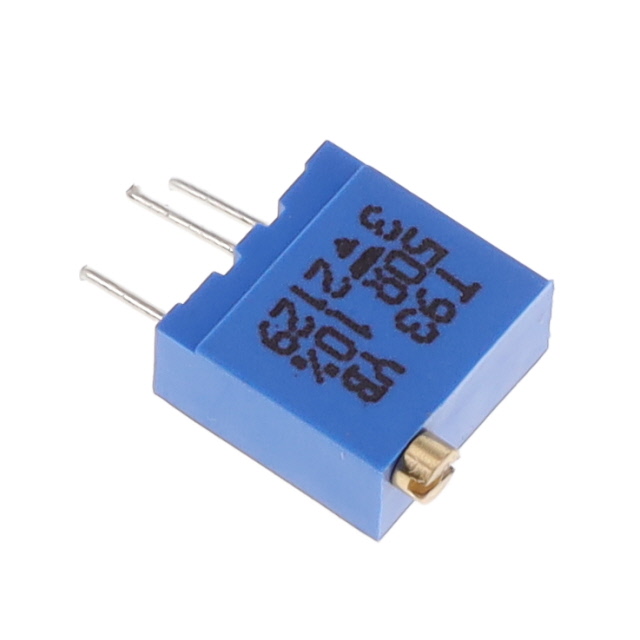

T93YB500KT20
TRIMMER 50 OHM 0.5W PC PIN TOPManufacturer: Vishay Sfernice
Categories: Trimmer Potentiometers
Quality Control: Learn More
50 Ohms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 23.0 Turn Top Adjustment
Additional Information
Series: T93RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 0.5W, 1/2W |
| Tolerance | ±10% |
| Packaging | Tube |
| Temperature Coefficient | ±100ppm/°C |
| Adjustment Type | Top Adjustment |
| Size / Dimension | Rectangular - 0.382"" x 0.197"" Face (9.70mm x 5.00mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pins |
| Resistive Material | Cermet |
| Resistance | 50 Ohms |
| Number of Turns | 23.0 |
