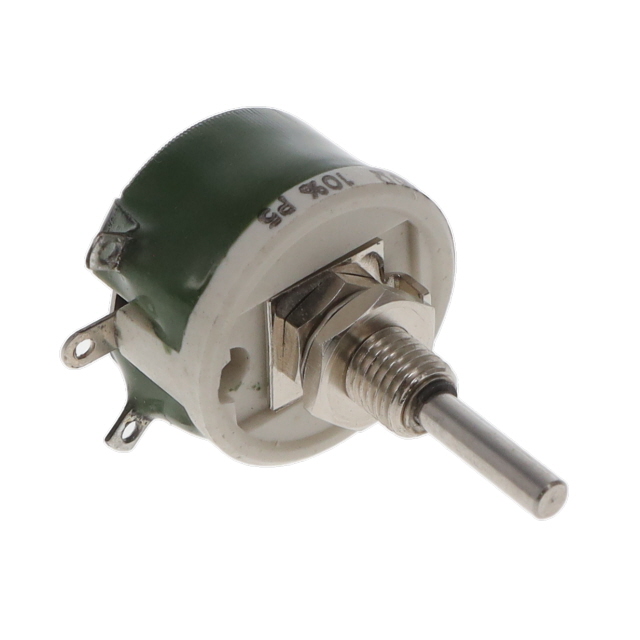

RT012B700AS5000KB
POT 500 OHM 12W WIREWOUND LINManufacturer: Vishay Sfernice
Categories: Rotary Potentiometers, Rheostats
Quality Control: Learn More
500 Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Wirewound 12W Solder Lug
Additional Information
Series: RT12RoHS Status: ROHS3 CompliantManufacturer Lead Time: 9 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 500 |
| Power (Watts) | 12W |
| Tolerance | ±10% |
| Features | - |
| Packaging | Bulk |
| Temperature Coefficient | - |
| Adjustment Type | User Defined |
| Mounting Type | Panel Mount |
| Termination Style | Solder Lug |
| Bushing Thread | M6 x 0.75 |
| Actuator Length | 0.866"" (22.00mm) |
| Actuator Type | Round |
| Built in Switch | None |
| Actuator Diameter | 0.118"" (3.00mm) |
| Resistive Material | Wirewound |
| Taper | Linear |
| Rotation | 290° |
| Number of Gangs | 1 |
| Number of Turns | 1.0 |
Request a Quote
Clients Also Buy

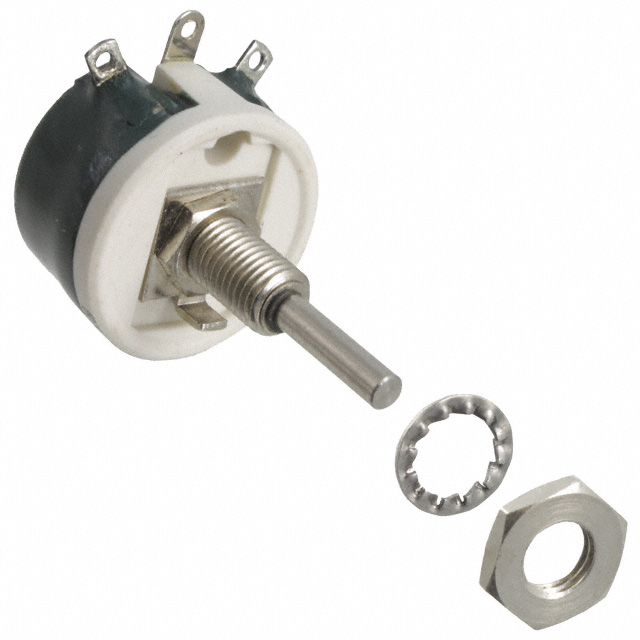

RT012AS1000KB
