PRV6SAABJYB25503KL
POT 50K OHM 1.5W CERMET LOGManufacturer: Vishay Sfernice
Categories: Rotary Potentiometers, Rheostats
Quality Control: Learn More

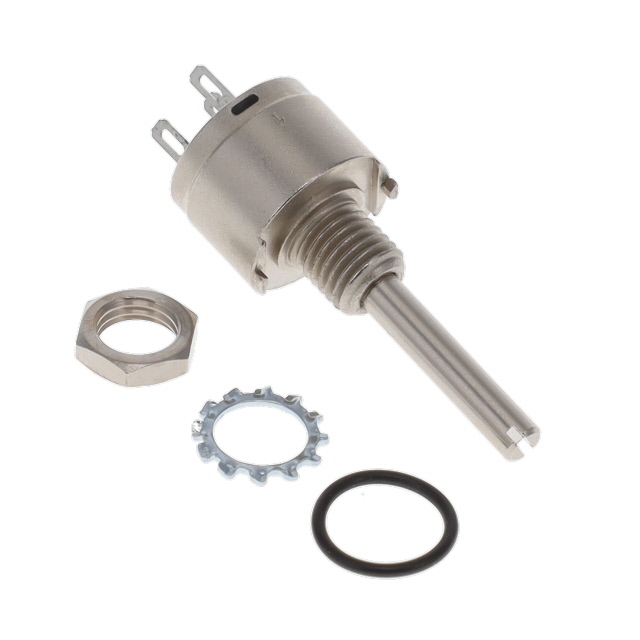

Vishay Sfernice PRV6 Series 50k Ohm logarithmic taper cermet potentiometer, part number PRV6SAABJYB25503KL. This single-gang panel mount component offers a 1.5W power rating at rated temperature and a 300° rotation with 1.0 turns. Featuring a sealed design and slotted actuator, it provides a 50k Ohm resistance with a ±10% tolerance and a temperature coefficient of ±150ppm/°C. Termination is via solder lugs. This component is commonly utilized in industrial automation, audio equipment, and test and measurement instrumentation.
Additional Information
Series: PRV6RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 50k |
| Power (Watts) | 1.5W |
| Tolerance | ±10% |
| Features | Sealed |
| Packaging | Box |
| Temperature Coefficient | ±150ppm/°C |
| Adjustment Type | User Defined |
| Mounting Type | Panel Mount |
| Termination Style | Solder Lug |
| Bushing Thread | - |
| Actuator Length | 0.866"" (22.00mm) |
| Actuator Type | Slotted |
| Built in Switch | None |
| Actuator Diameter | 0.125"" (3.18mm) |
| Resistive Material | Cermet |
| Taper | Logarithmic |
| Rotation | 300° |
| Number of Gangs | 1 |
| Number of Turns | 1.0 |
