PRV6SAABJYB25502KL
POT 5K OHM 1.5W CERMET LOGManufacturer: Vishay Sfernice
Categories: Rotary Potentiometers, Rheostats
Quality Control: Learn More

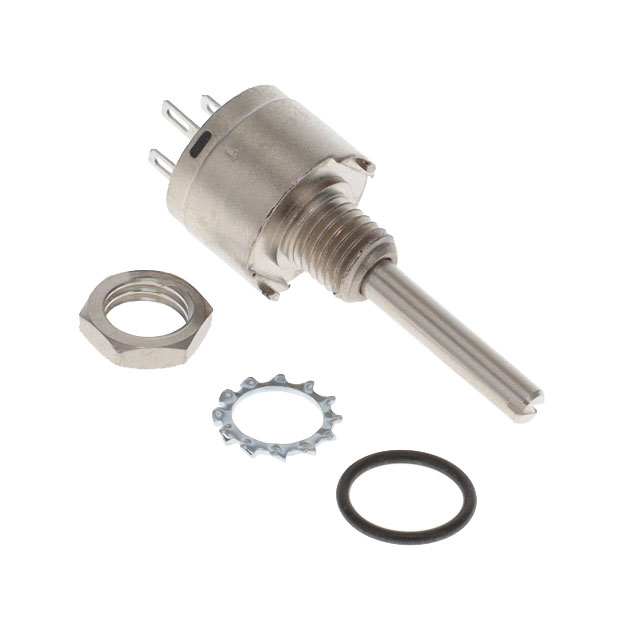

Vishay Sfernice PRV6 series logarithmic potentiometer, part number PRV6SAABJYB25502KL. This 5k Ohm, 1.5W cermet potentiometer features a single gang configuration with a 1.0 turn adjustment and a 300° rotation. The panel mount design includes a 0.125" diameter slotted actuator with an 0.866" length. Termination is via solder lugs, and the component is sealed for enhanced durability. Its logarithmic taper and ±10% tolerance make it suitable for applications requiring precise audio or signal level control. Typical industries utilizing this component include professional audio, industrial control, and test and measurement equipment. The temperature coefficient is ±150ppm/°C.
Additional Information
Series: PRV6RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 5K |
| Power (Watts) | 1.5W |
| Tolerance | ±10% |
| Features | Sealed |
| Packaging | Box |
| Temperature Coefficient | ±150ppm/°C |
| Adjustment Type | User Defined |
| Mounting Type | Panel Mount |
| Termination Style | Solder Lug |
| Bushing Thread | - |
| Actuator Length | 0.866"" (22.00mm) |
| Actuator Type | Slotted |
| Built in Switch | None |
| Actuator Diameter | 0.125"" (3.18mm) |
| Resistive Material | Cermet |
| Taper | Logarithmic |
| Rotation | 300° |
| Number of Gangs | 1 |
| Number of Turns | 1.0 |
