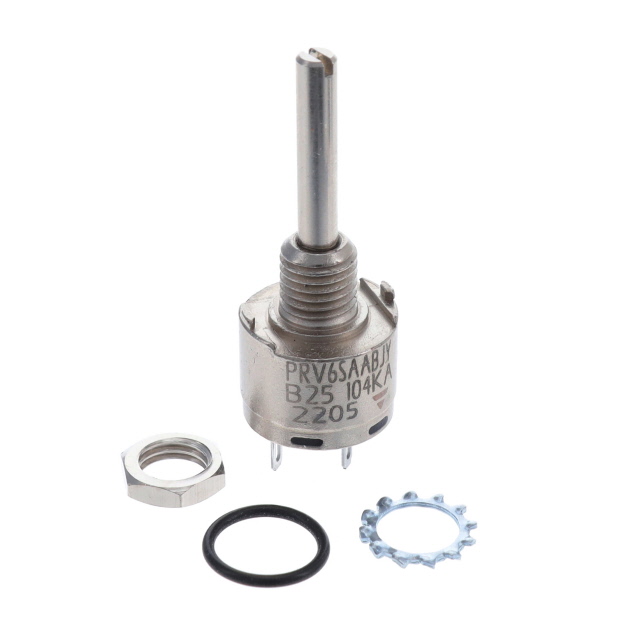

PRV6SAABJYB25104KA
POT 100K OHM 1.5W CERMET LINEARManufacturer: Vishay Sfernice
Categories: Rotary Potentiometers, Rheostats
Quality Control: Learn More
Vishay Sfernice PRV6 series rotary potentiometer, part number PRV6SAABJYB25104KA. This 100k Ohm, 1.5W cermet potentiometer features a linear taper and a single gang configuration. It is designed for panel mounting with a 300° rotation and a single turn adjustment. The actuator is 3.18mm (0.125") in diameter with a slotted shaft measuring 22.00mm (0.866") in length. Termination is via solder lugs. This component offers a temperature coefficient of ±150ppm/°C and is sealed for enhanced durability. Industries utilizing this component include industrial automation and test and measurement equipment.
Additional Information
Series: PRV6RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 100k |
| Power (Watts) | 1.5W |
| Tolerance | ±10% |
| Features | Sealed |
| Packaging | Box |
| Temperature Coefficient | ±150ppm/°C |
| Adjustment Type | User Defined |
| Mounting Type | Panel Mount |
| Termination Style | Solder Lug |
| Bushing Thread | - |
| Actuator Length | 0.866"" (22.00mm) |
| Actuator Type | Slotted |
| Built in Switch | None |
| Actuator Diameter | 0.125"" (3.18mm) |
| Resistive Material | Cermet |
| Taper | Linear |
| Rotation | 300° |
| Number of Gangs | 1 |
| Number of Turns | 1.0 |
