PRV6SAABJYB25103KA
POT 10K OHM 1.5W CERMET LINEARManufacturer: Vishay Sfernice
Categories: Rotary Potentiometers, Rheostats
Quality Control: Learn More

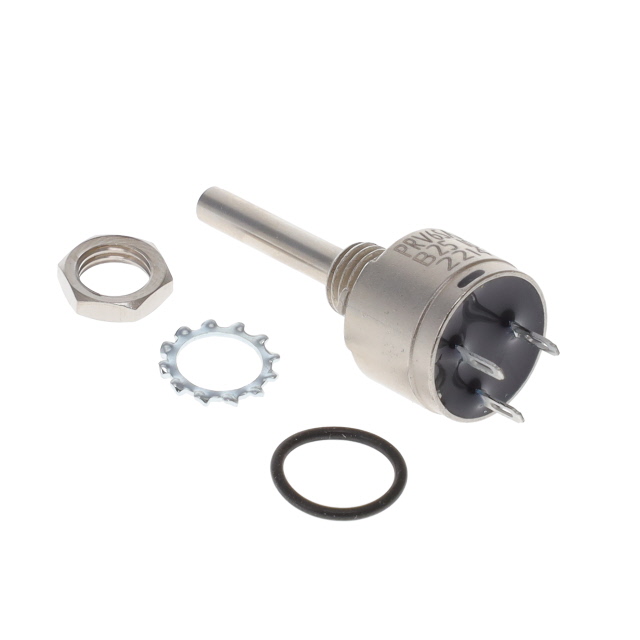

Vishay Sfernice PRV6 Series 10k Ohm linear cermet potentiometer, part number PRV6SAABJYB25103KA. This single-gang, panel-mount unit offers a 300° rotation with 1.0 turns and a power rating of 1.5W at 10k Ohms. Featuring a slotted actuator with a diameter of 0.125" and length of 0.866", it is constructed with durable cermet resistive material. The potentiometer is sealed for enhanced protection and utilizes solder lug termination. Its temperature coefficient is ±150ppm/°C with a ±10% resistance tolerance. Applications include industrial automation, test and measurement equipment, and audio control systems.
Additional Information
Series: PRV6RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 10k |
| Power (Watts) | 1.5W |
| Tolerance | ±10% |
| Features | Sealed |
| Packaging | Box |
| Temperature Coefficient | ±150ppm/°C |
| Adjustment Type | User Defined |
| Mounting Type | Panel Mount |
| Termination Style | Solder Lug |
| Bushing Thread | - |
| Actuator Length | 0.866"" (22.00mm) |
| Actuator Type | Slotted |
| Built in Switch | None |
| Actuator Diameter | 0.125"" (3.18mm) |
| Resistive Material | Cermet |
| Taper | Linear |
| Rotation | 300° |
| Number of Gangs | 1 |
| Number of Turns | 1.0 |
