PRV6SAABJYB25102KA
POT 1K OHM 1.5W CERMET LINEARManufacturer: Vishay Sfernice
Categories: Rotary Potentiometers, Rheostats
Quality Control: Learn More

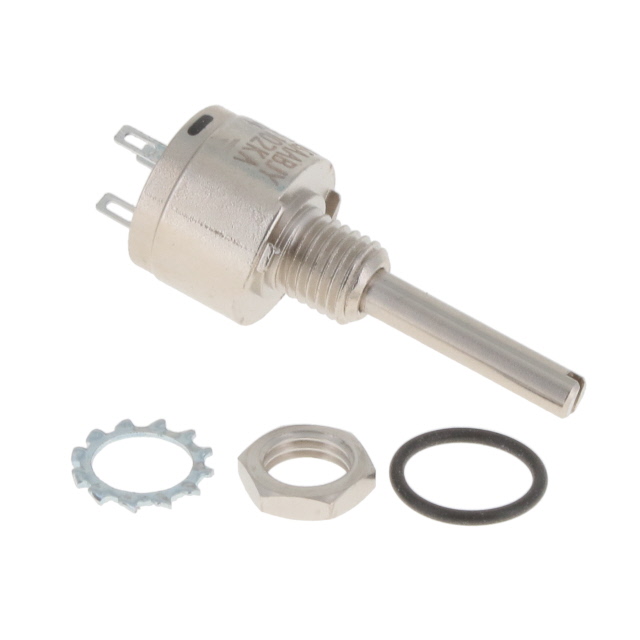

The Vishay Sfernice PRV6 series potentiometer, part number PRV6SAABJYB25102KA, is a 1k Ohm, 1.5W cermet component designed for panel mounting. This single-gang, linear taper potentiometer offers 1.0 turn of adjustment with a 300° rotation. Featuring a sealed construction and solder lug termination, it is suitable for applications requiring robust performance and precise manual control. The actuator features a 0.125" (3.18mm) diameter and a 0.866" (22.00mm) slotted shaft for user adjustment. The PRV6 series is commonly utilized in industrial automation, test and measurement equipment, and audio control systems. It boasts a power rating of 1.5W and a resistance tolerance of ±10%, with a temperature coefficient of ±150ppm/°C.
Additional Information
Series: PRV6RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 1k |
| Power (Watts) | 1.5W |
| Tolerance | ±10% |
| Features | Sealed |
| Packaging | Box |
| Temperature Coefficient | ±150ppm/°C |
| Adjustment Type | User Defined |
| Mounting Type | Panel Mount |
| Termination Style | Solder Lug |
| Bushing Thread | - |
| Actuator Length | 0.866"" (22.00mm) |
| Actuator Type | Slotted |
| Built in Switch | None |
| Actuator Diameter | 0.125"" (3.18mm) |
| Resistive Material | Cermet |
| Taper | Linear |
| Rotation | 300° |
| Number of Gangs | 1 |
| Number of Turns | 1.0 |
