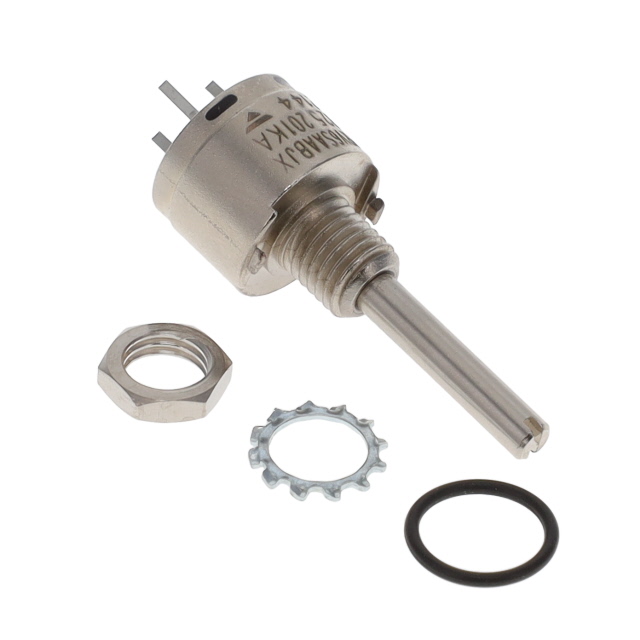

PRV6SAABJXB25201KA
POT 200 OHM 1.5W CERMET LINEARManufacturer: Vishay Sfernice
Categories: Rotary Potentiometers, Rheostats
Quality Control: Learn More
Vishay Sfernice PRV6 Series single-gang linear panel mount potentiometer, part number PRV6SAABJXB25201KA. This cermet element potentiometer offers a resistance of 200 Ohms with a power rating of 1.5 Watts. It features a 300° rotation with a single turn adjustment, a slotted actuator with a 3.18mm diameter and 22.00mm length, and is top-adjustable. The component is sealed for enhanced durability and is designed for panel mounting with PC pin terminations. Its linear taper and a temperature coefficient of ±150ppm/°C make it suitable for applications in industrial control, audio equipment, and measurement instrumentation.
Additional Information
Series: PRV6RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 200 |
| Power (Watts) | 1.5W |
| Tolerance | ±10% |
| Features | Sealed |
| Packaging | Box |
| Temperature Coefficient | ±150ppm/°C |
| Adjustment Type | Top Adjustment |
| Mounting Type | Panel Mount |
| Termination Style | PC Pins |
| Bushing Thread | - |
| Actuator Length | 0.866"" (22.00mm) |
| Actuator Type | Slotted |
| Built in Switch | None |
| Actuator Diameter | 0.125"" (3.18mm) |
| Resistive Material | Cermet |
| Taper | Linear |
| Rotation | 300° |
| Number of Gangs | 1 |
| Number of Turns | 1.0 |
