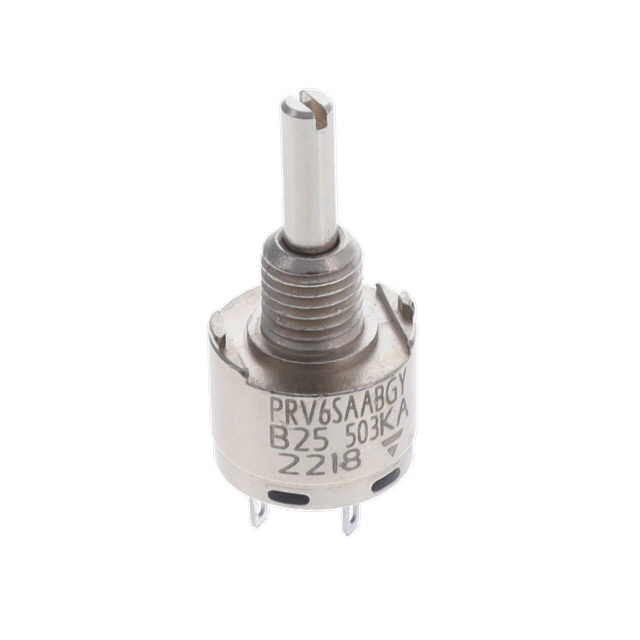

PRV6SAABGYB25503KA
POT 50K OHM 1.5W CERMET LINEARManufacturer: Vishay Sfernice
Categories: Rotary Potentiometers, Rheostats
Quality Control: Learn More
The Vishay Sfernice PRV6 series potentiometer, part number PRV6SAABGYB25503KA, is a single-gang, panel-mount rotary component featuring a 50k Ohm cermet resistive element with a linear taper. This potentiometer offers a 1.0 turn adjustment range, providing 300° of rotation with a power rating of 1.5W. The PRV6SAABGYB25503KA is constructed with solder lug termination for reliable connections and a sealed design for enhanced durability in demanding environments. Its actuator, with a 3.18mm diameter and 16.00mm length, features a slotted tip for user adjustment. This component is suitable for applications in industrial control, test and measurement equipment, and audio systems where precise manual adjustment is required. The tolerance is ±10% with a temperature coefficient of ±150ppm/°C.
Additional Information
Series: PRV6RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 50k |
| Power (Watts) | 1.5W |
| Tolerance | ±10% |
| Features | Sealed |
| Packaging | Box |
| Temperature Coefficient | ±150ppm/°C |
| Adjustment Type | User Defined |
| Mounting Type | Panel Mount |
| Termination Style | Solder Lug |
| Bushing Thread | - |
| Actuator Length | 0.630"" (16.00mm) |
| Actuator Type | Slotted |
| Built in Switch | None |
| Actuator Diameter | 0.125"" (3.18mm) |
| Resistive Material | Cermet |
| Taper | Linear |
| Rotation | 300° |
| Number of Gangs | 1 |
| Number of Turns | 1.0 |
