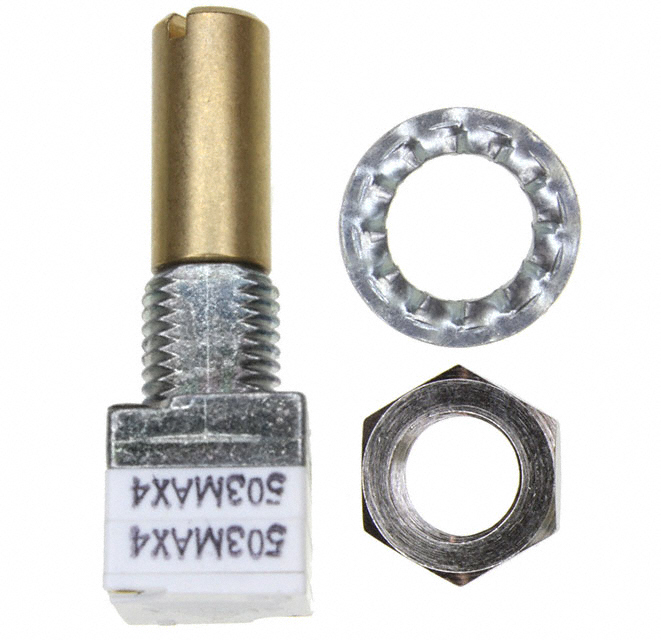

P9A2R100FISX1503MA
POT 50K OHM 1/20W PLASTIC LINEARManufacturer: Vishay Sfernice
Categories: Rotary Potentiometers, Rheostats
Quality Control: Learn More
Vishay Sfernice P9 series, part number P9A2R100FISX1503MA, is a dual-gang, panel-mount potentiometer utilizing a conductive plastic resistive element. This component offers a resistance value of 50k Ohms with a ±20% tolerance and a linear taper. It is rated for 0.05W (1/20W) power dissipation at its maximum resistance. The unit features a single turn of rotation (300°) with a 6.00mm slotted actuator. Termination is via PC pins, and the bushing is threaded M7 x 0.75. The P9 series is suitable for applications in industrial and consumer electronics where precise manual control is required. The temperature coefficient is ±500ppm/°C.
Additional Information
Series: P9RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 50k |
| Power (Watts) | 0.05W, 1/20W |
| Tolerance | ±20% |
| Features | - |
| Packaging | Bulk |
| Temperature Coefficient | ±500ppm/°C |
| Adjustment Type | Side Adjustment |
| Mounting Type | Panel Mount |
| Termination Style | PC Pins |
| Bushing Thread | M7 x 0.75 |
| Actuator Length | 0.787"" (20.00mm) |
| Actuator Type | Slotted |
| Built in Switch | None |
| Actuator Diameter | 0.236"" (6.00mm) |
| Resistive Material | Conductive Plastic |
| Taper | Linear |
| Rotation | 300° |
| Number of Gangs | 2 |
| Number of Turns | 1.0 |
Request a Quote
Clients Also Buy

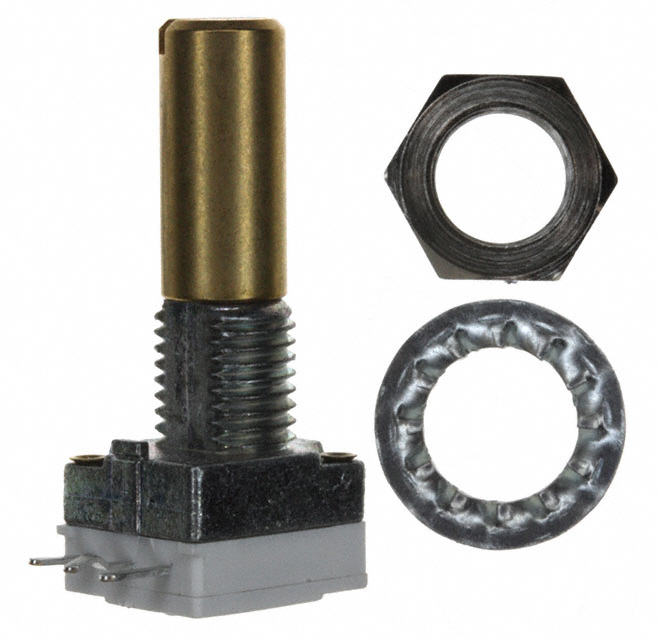

P9A1R100FISX1102MA
POT 1K OHM 1/10W PLASTIC LINEAR

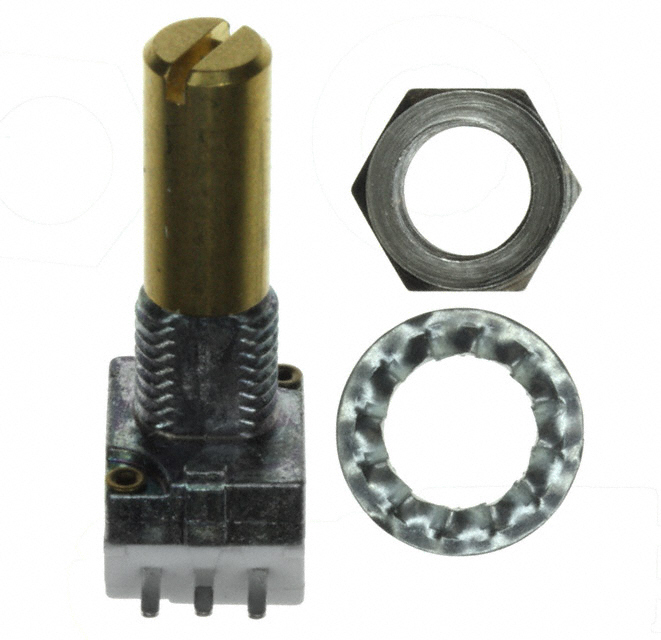

P9A1R100FISX1103MA
