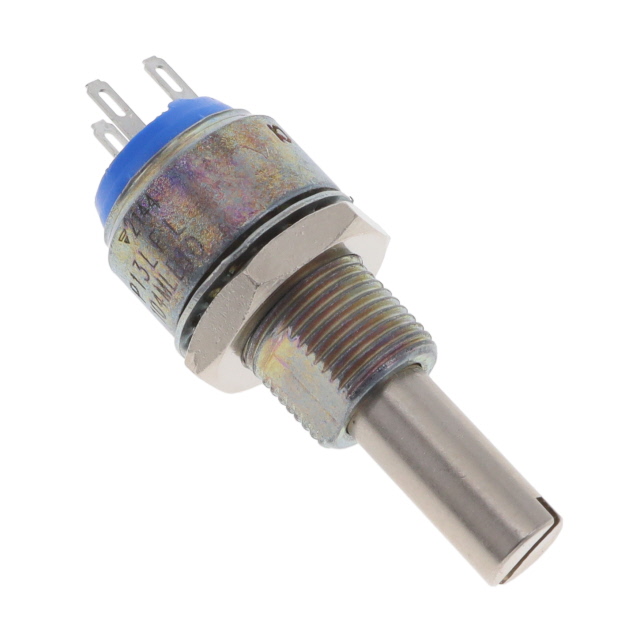

P13LFL104MLB10
POT 100K OHM 3/4W CERMET LOGManufacturer: Vishay Sfernice
Categories: Rotary Potentiometers, Rheostats
Quality Control: Learn More
100k Ohm 1 Gang Logarithmic Panel Mount Potentiometer 1.0 Turns Cermet 0.75W, 3/4W Solder Lug
Additional Information
Series: P13RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 100k |
| Power (Watts) | 0.75W, 3/4W |
| Tolerance | ±20% |
| Features | Sealed |
| Packaging | Box |
| Temperature Coefficient | ±150ppm/°C |
| Adjustment Type | User Defined |
| Mounting Type | Panel Mount |
| Termination Style | Solder Lug |
| Bushing Thread | M10 x 0.75 |
| Actuator Length | 0.984"" (25.00mm) |
| Actuator Type | Slotted |
| Built in Switch | None |
| Actuator Diameter | 0.236"" (6.00mm) |
| Resistive Material | Cermet |
| Taper | Logarithmic |
| Rotation | 300° |
| Number of Gangs | 1 |
| Number of Turns | 1.0 |
