534B1204JC

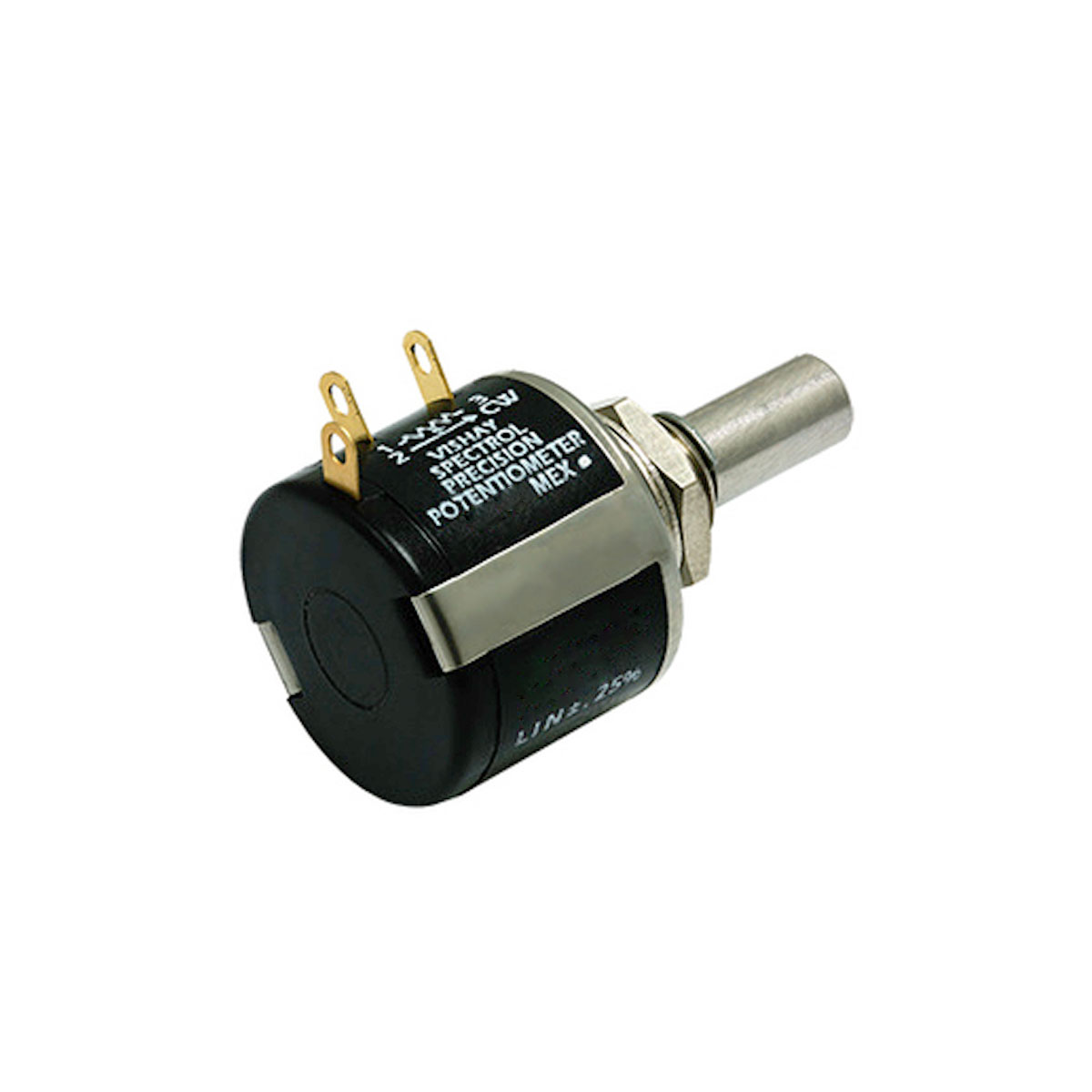

POT 200K OHM 2W WIREWOUND LINEARManufacturer: Vishay Sfernice
Categories: Rotary Potentiometers, Rheostats
Quality Control: Learn More
200k Ohm 1 Gang Linear Panel Mount Potentiometer 10.0 Turns Wirewound 2W Solder Lug
Additional Information
Series: 534RoHS Status: ROHS3 CompliantManufacturer Lead Time: 9 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 200k |
| Power (Watts) | 2W |
| Tolerance | ±5% |
| Features | High Torque |
| Packaging | Box |
| Temperature Coefficient | 20ppm/°C |
| Adjustment Type | User Defined |
| Mounting Type | Panel Mount |
| Termination Style | Solder Lug |
| Bushing Thread | 3/8-32 |
| Actuator Length | 0.812"" (20.63mm) |
| Actuator Type | Slotted |
| Built in Switch | None |
| Actuator Diameter | 0.250"" (6.35mm) |
| Resistive Material | Wirewound |
| Taper | Linear |
| Rotation | 3600° |
| Number of Gangs | 1 |
| Number of Turns | 10.0 |
Request a Quote
